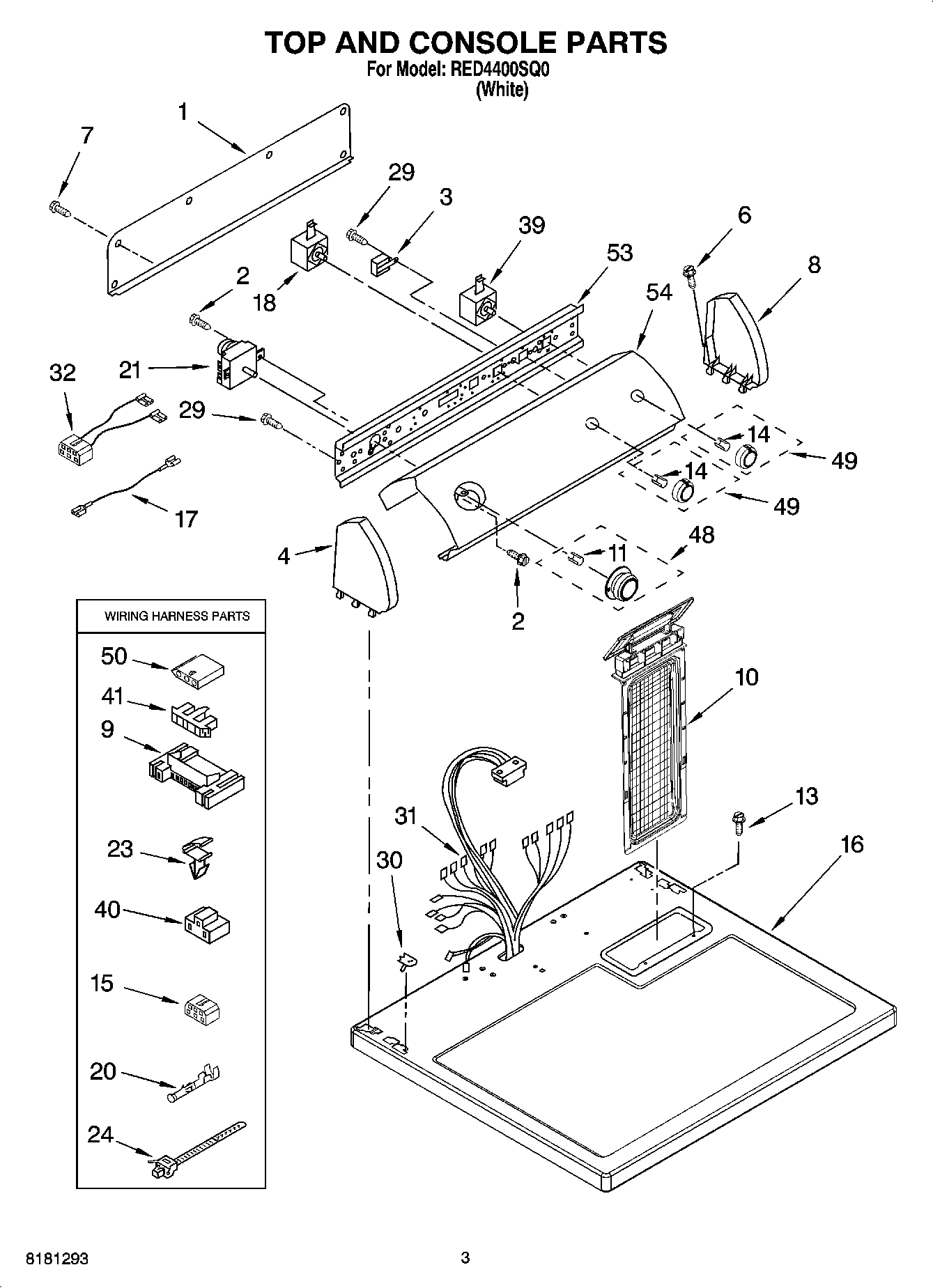

RED4400SQ0 02 – TOP AND CONSOLE PARTS

RED4400SQ0 02 – TOP AND CONSOLE PARTS

Written by

in

RED4400SQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3WP694419 Whirlpool Buzzer Adjuster
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15Block, Disconnect
16Top
17Wire, Jumper (Black)
18WP3399639 Whirlpool Switch
20WP94614 Whirlpool Terminal
21WP3979617 Whirlpool Timer
23WP3394427 Whirlpool Clip
24Tie, Cable
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
328539893 Whirlpool Wire Harness
39WP3398095 Whirlpool Dryer Start Relay
403401144 Whirlpool Connector
41Connector, Timer
48WP8557455 Whirlpool Knob Timer
49KNOB
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control
