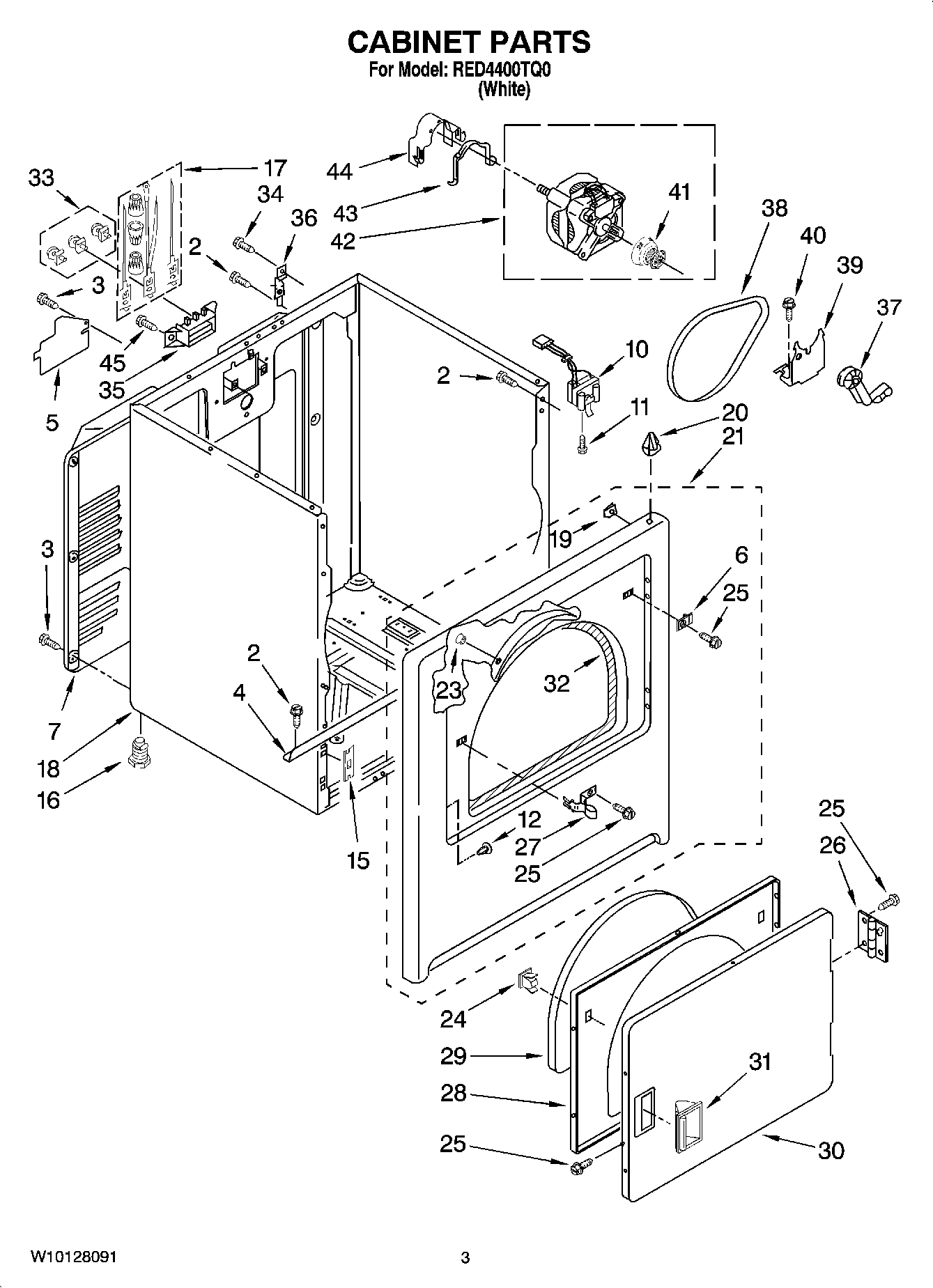

RED4400TQ0 02 – CABINET PARTS

RED4400TQ0 02 – CABINET PARTS

Written by

in

RED4400TQ0 02 – CABINET PARTS

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25WP488627 Whirlpool Refrigerator Screw
26WPW10362431 Whirlpool Hinge Assembly
27W11429589 Whirlpool Strike
28WP3402341 Whirlpool Door
29SEAL-DOOR DRYER
30W10861227 Whirlpool Door Assembly
31WP3405184 Whirlpool White Door Handle
32W11035878 Whirlpool Bearing and Seal
33279393 Whirlpool Terminal Block Screw and Nut Kit
34W10850756 Whirlpool Screw
35WP3397659 Whirlpool Terminal Block
36WP8066217 Whirlpool Hinge
37WP691366 Whirlpool Dryer Idler Pulley Assembly
38341241 Whirlpool Dryer Drum Belt
39WP348780 Whirlpool Base
403400500 Whirlpool Screw
41WP8066184 Whirlpool Dryer Motor Pulley
42279827 Whirlpool Dryer Drive Motor
43WP660658 Whirlpool Clamp
44WP3404162 Whirlpool Clamp
45WP308685 Whirlpool Microwave Screw
