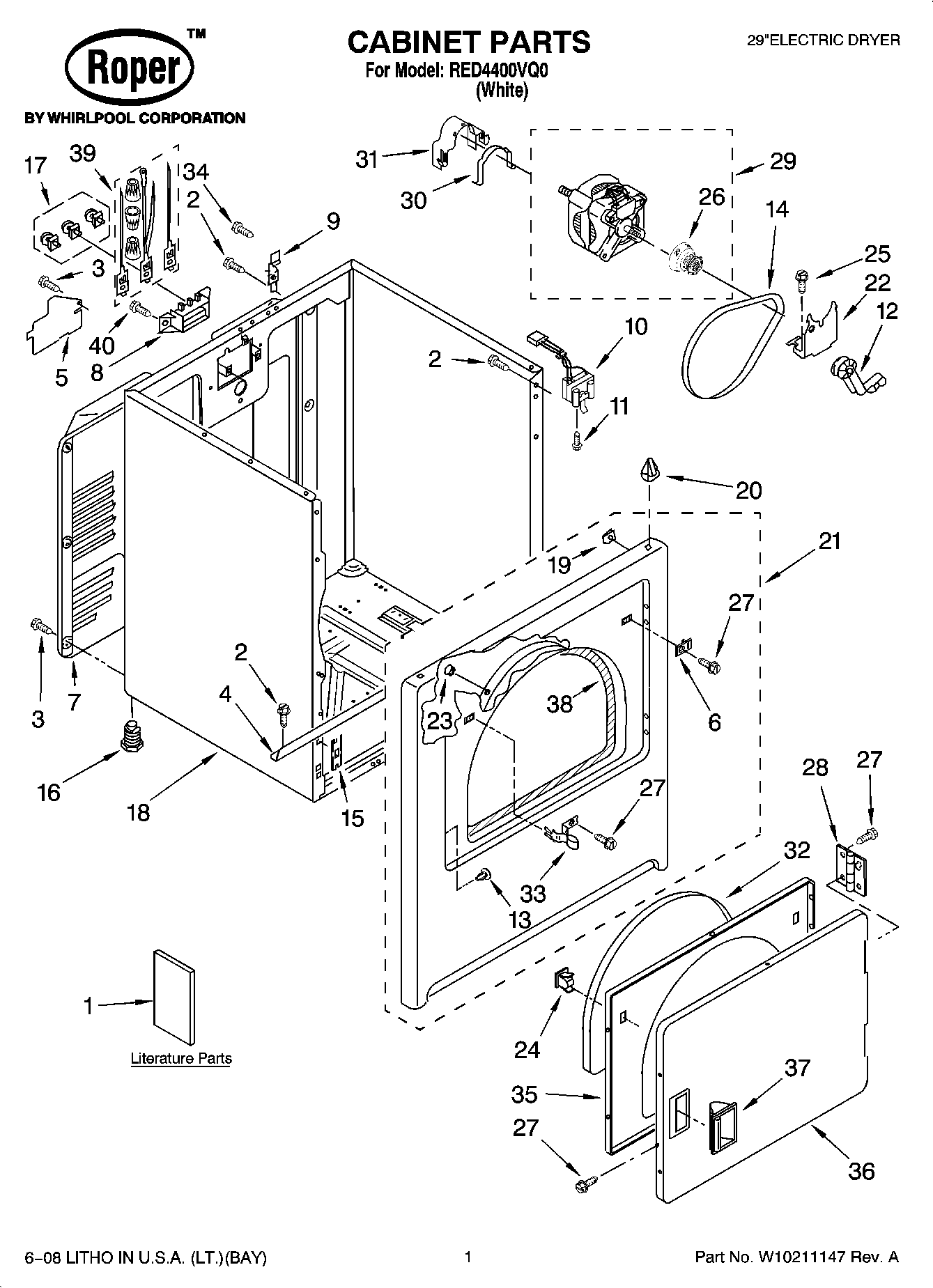

RED4400VQ0 01 – CABINET PARTS

Products

PositionProduct
1Sheet, Cycle Feature
1Guide, Use & Care
1Wiring Diagram
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Instructions, Installation
1WPL 677818
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
8WP3397659 Whirlpool Terminal Block
9WP8066217 Whirlpool Hinge
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP691366 Whirlpool Dryer Idler Pulley Assembly
13WP3404413 Whirlpool Plug
14341241 Whirlpool Dryer Drum Belt
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
22WP348780 Whirlpool Base
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
253400500 Whirlpool Screw
26WP8066184 Whirlpool Dryer Motor Pulley
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29279827 Whirlpool Dryer Drive Motor
30WP660658 Whirlpool Clamp
31WP3404162 Whirlpool Clamp
32SEAL-DOOR DRYER
33W11429589 Whirlpool Strike
34W10850756 Whirlpool Screw
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP308685 Whirlpool Microwave Screw
