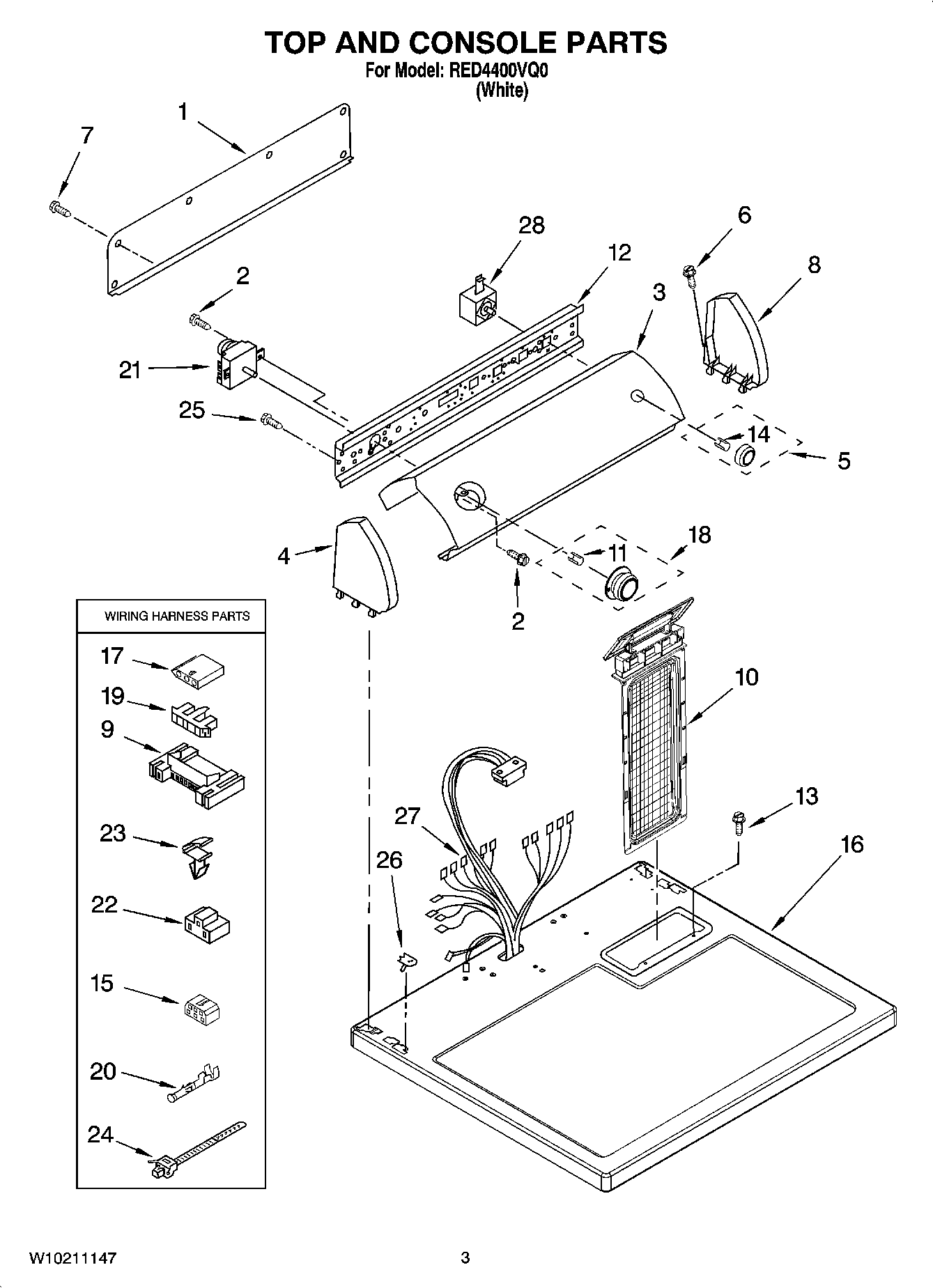

RED4400VQ0 02 – TOP AND CONSOLE PARTS

RED4400VQ0 02 – TOP AND CONSOLE PARTS

Written by

in

RED4400VQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3Panel, Control
5Knob, Push-To-Start
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12Bracket, Control
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15Block, Disconnect
16Top
173936144 Whirlpool Connector
18WP8557455 Whirlpool Knob Timer
19Connector, Timer
20WP94614 Whirlpool Terminal
21WP8299781 Whirlpool Timer
223401144 Whirlpool Connector
23WP3394427 Whirlpool Clip
24Tie, Cable
25WP90767 Whirlpool Screw
26WP357213 Whirlpool Hinge Stopper
27WPW10450292 Whirlpool Wire Harness
28WP3977456 Whirlpool Start Switch
