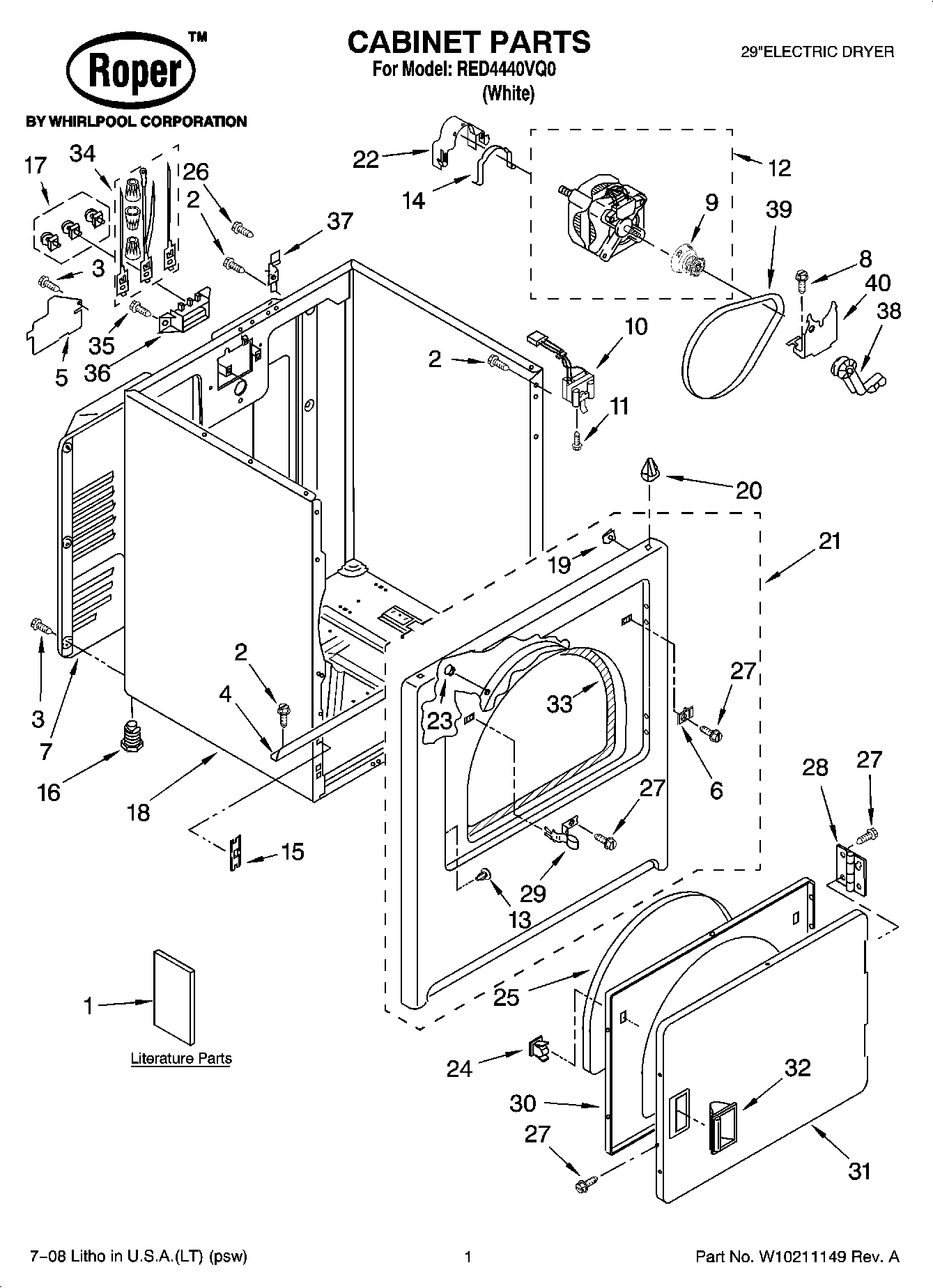

RED4440VQ0 01 – CABINET PARTS

RED4440VQ0 01 – CABINET PARTS

Written by

in

RED4440VQ0 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Sheet, Cycle Feature
1Wiring Diagram
1Instructions, Installation
1Guide, Use & Care
1WPL 677818
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
83400500 Whirlpool Screw
9WP8066184 Whirlpool Dryer Motor Pulley
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12279827 Whirlpool Dryer Drive Motor
13WP3404413 Whirlpool Plug
14WP660658 Whirlpool Clamp
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
22WP3404162 Whirlpool Clamp
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
25SEAL-DOOR DRYER
26W10850756 Whirlpool Screw
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29W11429589 Whirlpool Strike
30WP3402341 Whirlpool Door
31W10861227 Whirlpool Door Assembly
32WP3405184 Whirlpool White Door Handle
33W11035878 Whirlpool Bearing and Seal
34279393 Whirlpool Terminal Block Screw and Nut Kit
35WP308685 Whirlpool Microwave Screw
36WP3397659 Whirlpool Terminal Block
37WP8066217 Whirlpool Hinge
38WP691366 Whirlpool Dryer Idler Pulley Assembly
39341241 Whirlpool Dryer Drum Belt
40WP348780 Whirlpool Base
