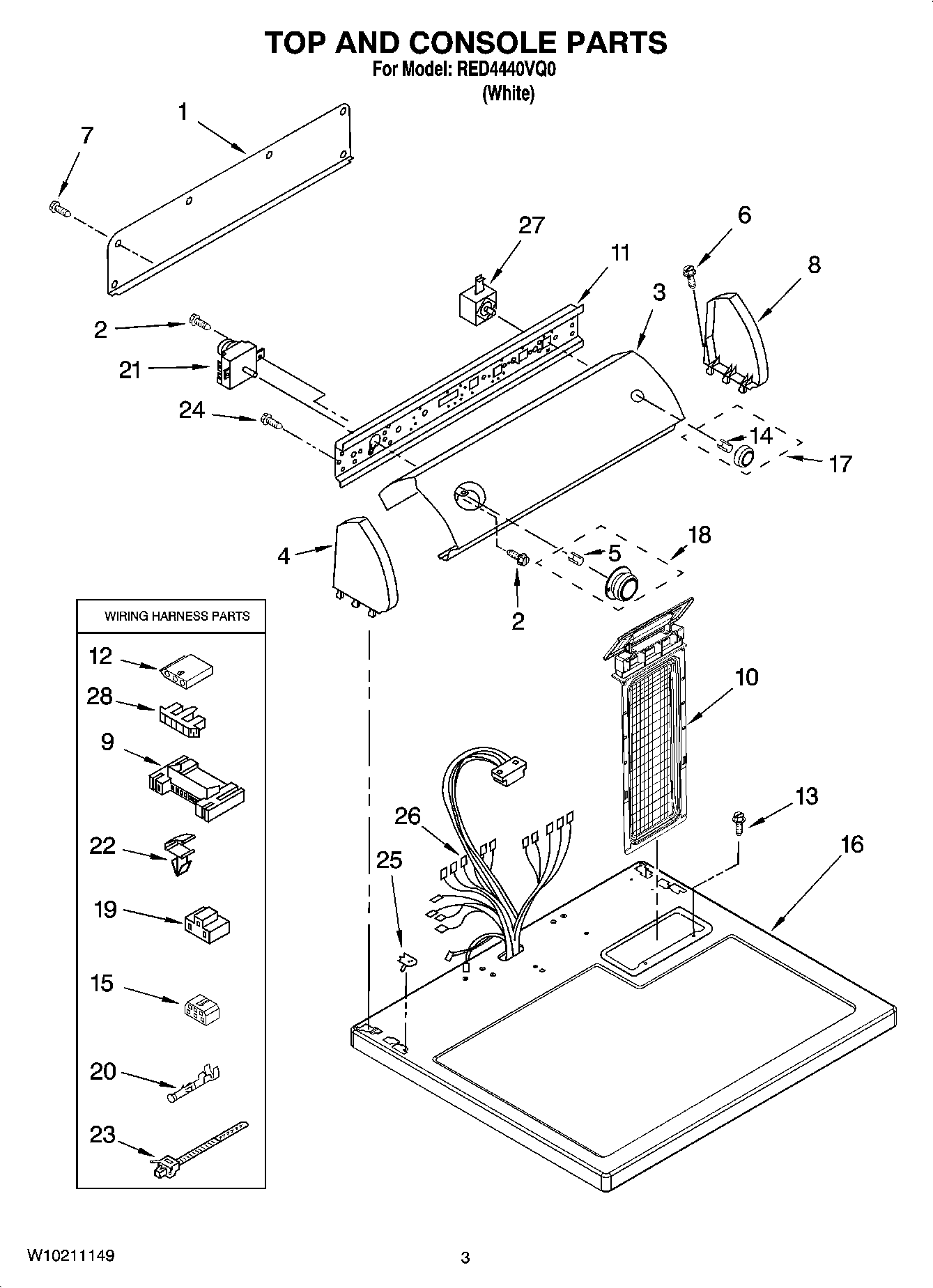

RED4440VQ0 02 – TOP AND CONSOLE PARTS

RED4440VQ0 02 – TOP AND CONSOLE PARTS

Written by

in

RED4440VQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3Panel, Control
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11Bracket, Control
123936144 Whirlpool Connector
13W11693756 Whirlpool Screw Assembly
14WP8536939 Whirlpool Spring Clip
15Block, Disconnect
16Top
17Knob, Push-To-Start
18WP8557455 Whirlpool Knob Timer
193401144 Whirlpool Connector
20WP94614 Whirlpool Terminal
21WP8299781 Whirlpool Timer
22WP3394427 Whirlpool Clip
23Tie, Cable
24WP90767 Whirlpool Screw
25WP357213 Whirlpool Hinge Stopper
26WPW10450292 Whirlpool Wire Harness
27WP3977456 Whirlpool Start Switch
28Connector, Timer
