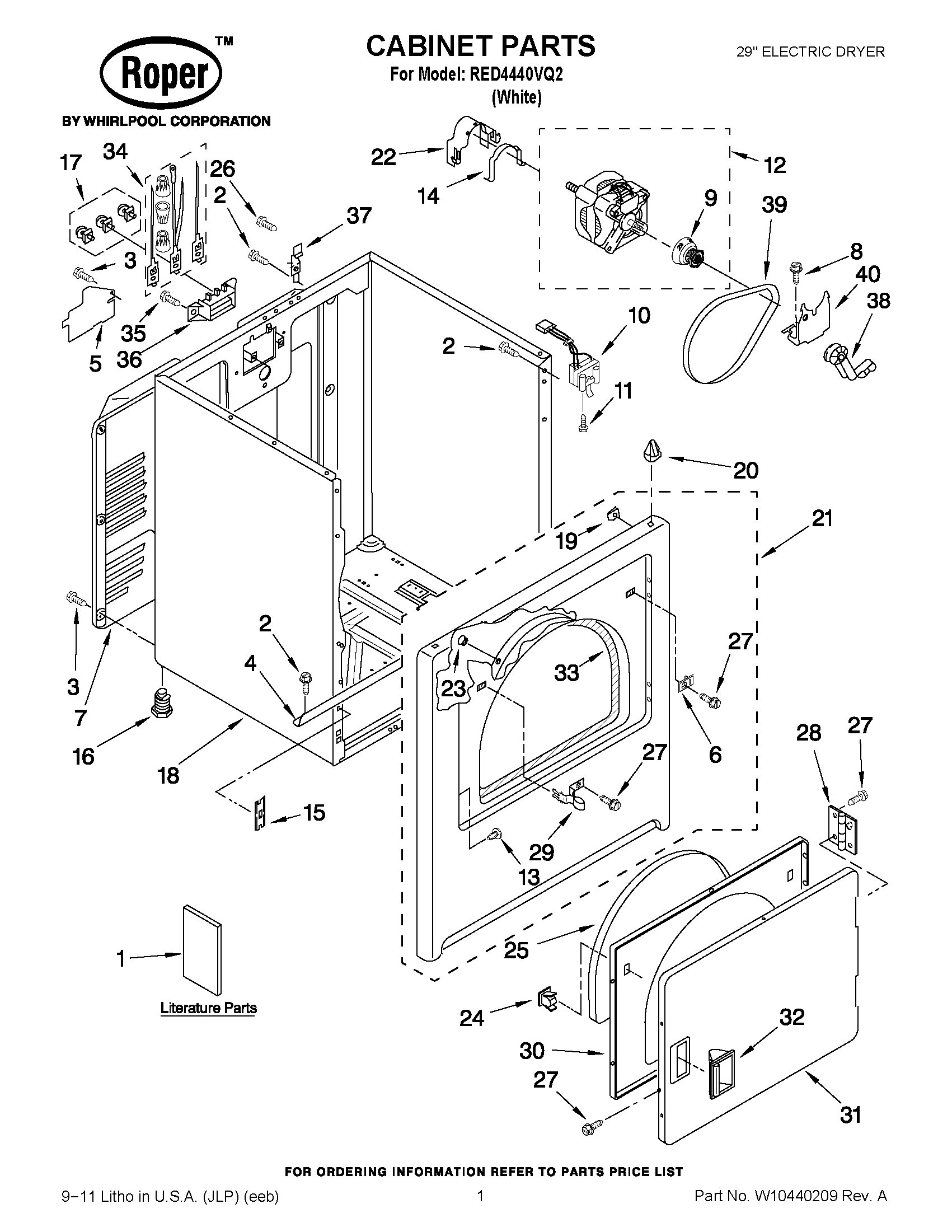

RED4440VQ2 01 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	GUIDE, USE & CARE
1	Wiring Diagram
1	INSTALLATION INSTRUCTIONS
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	3400500 Whirlpool Screw
9	WP8066184 Whirlpool Dryer Motor Pulley
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	279827 Whirlpool Dryer Drive Motor
13	WP3404413 Whirlpool Plug
14	CLAMP
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	W10806345 Whirlpool Panel
22	WP3404162 Whirlpool Clamp
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	SEAL-DOOR DRYER
26	WP3390631 Whirlpool Screw
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	W11429589 Whirlpool Strike
30	WP3402341 Whirlpool Door
31	W10861227 Whirlpool Door Assembly
32	WP3405184 Whirlpool White Door Handle
33	W11035878 Whirlpool Bearing and Seal
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	WP308685 Whirlpool Microwave Screw
36	WP3397659 Whirlpool Terminal Block
37	WP8066217 Whirlpool Hinge
38	WP691366 Whirlpool Dryer Idler Pulley Assembly
39	341241 Whirlpool Dryer Drum Belt
40	WP348780 Whirlpool Base
