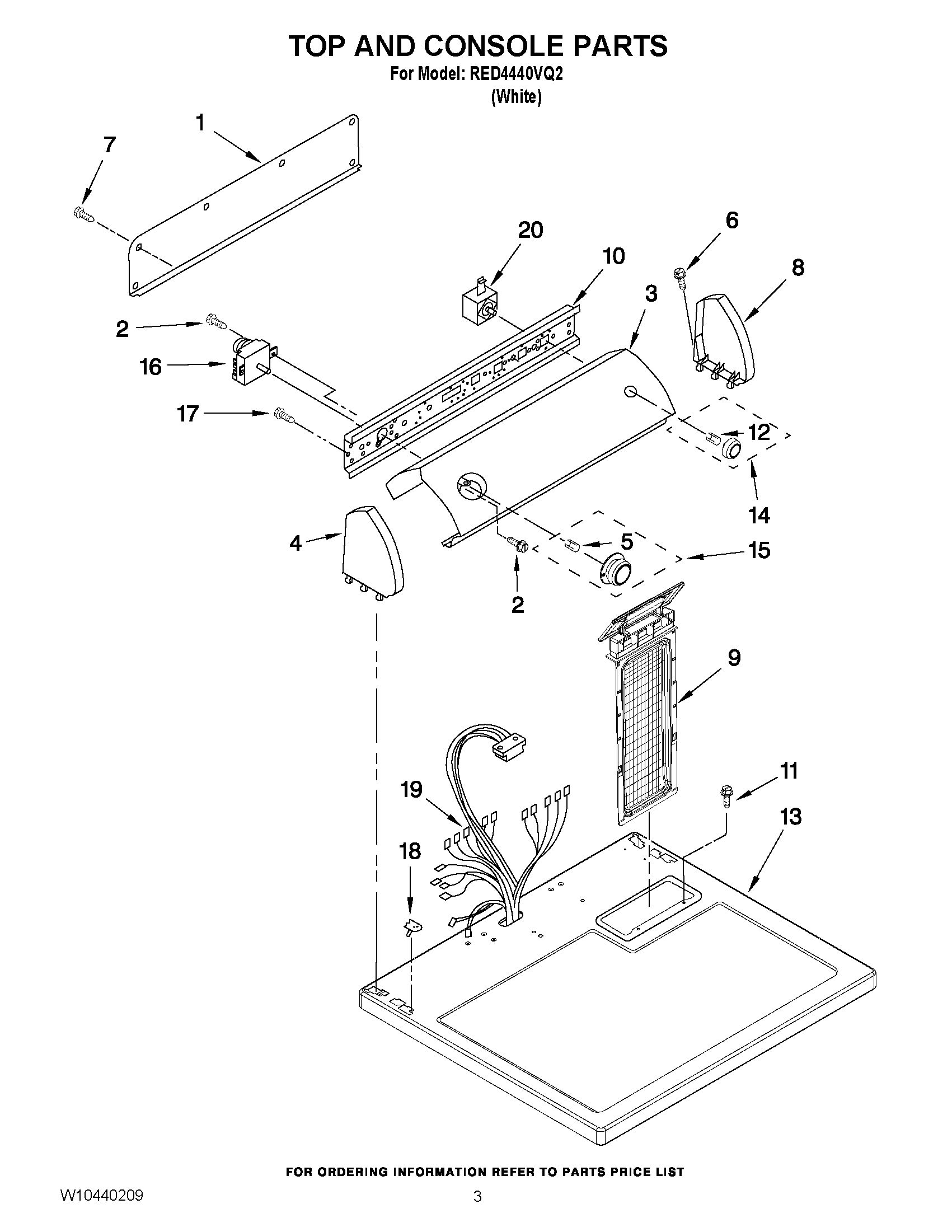

RED4440VQ2 02 – TOP AND CONSOLE PARTS

RED4440VQ2 02 – TOP AND CONSOLE PARTS

Written by

in

RED4440VQ2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23400859 Whirlpool Screw
3Panel, Control
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9WPW10717210 Whirlpool Dryer Lint Screen Filter
10Bracket, Control
11W11693756 Whirlpool Screw Assembly
12WP8536939 Whirlpool Spring Clip
13Top
14Knob, Push-To-Start
15WP8557455 Whirlpool Knob Timer
16WP8299781 Whirlpool Timer
17WP90767 Whirlpool Screw
18WP357213 Whirlpool Hinge Stopper
19WPW10450292 Whirlpool Wire Harness
20WP3977456 Whirlpool Start Switch
