RED4645EW0 02 – TOP AND CONSOLE PARTS

RED4645EW0 02 – TOP AND CONSOLE PARTS

Written by

in

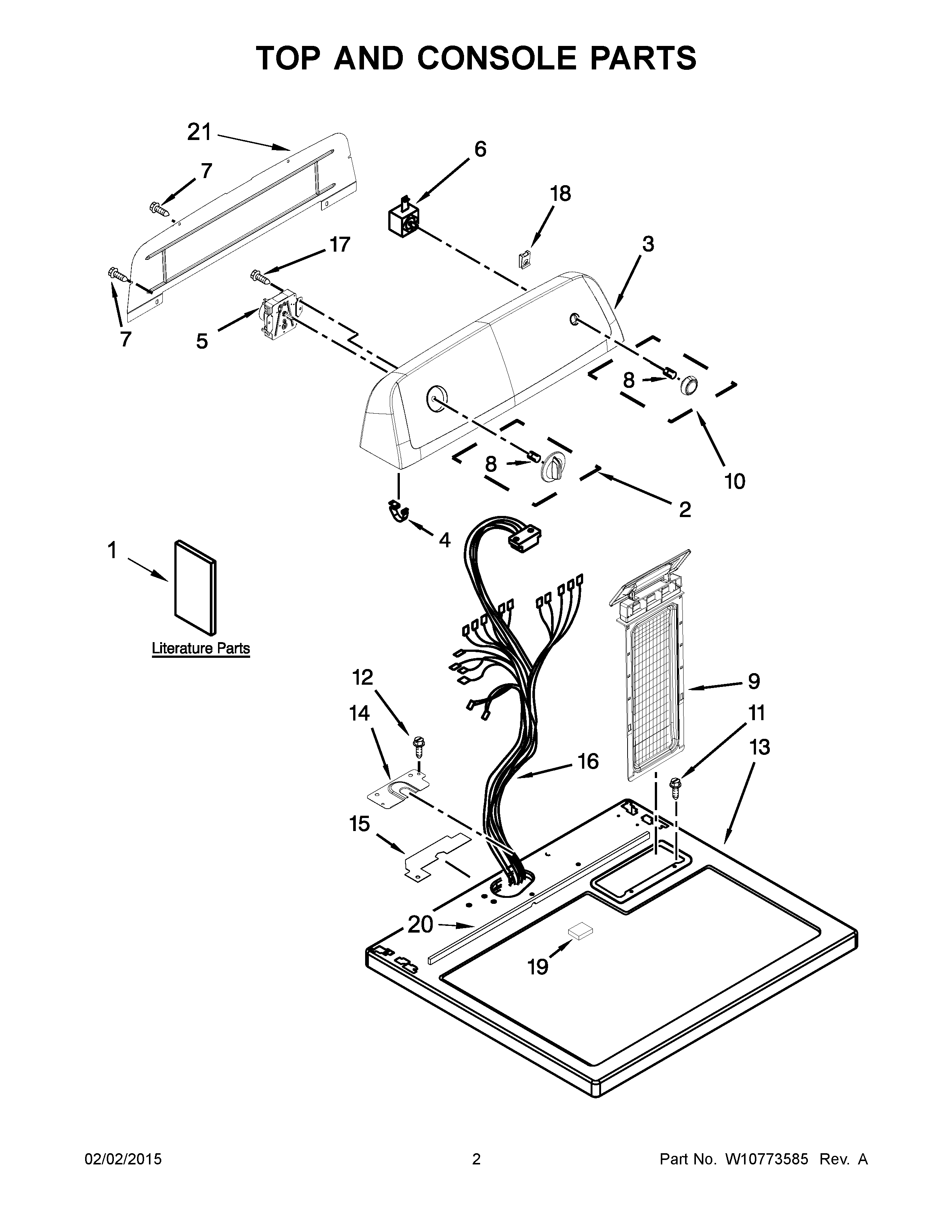

RED4645EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
2WPW10711289 Whirlpool Washer Control Knob Dryer
3W10096999 Whirlpool Control Panel
4WP8312709 Whirlpool Endcap Clip
5TIMER
6WPW10420741 Whirlpool Dryer Start Switch
8WP8536939 Whirlpool Spring Clip
9WPW10717210 Whirlpool Dryer Lint Screen Filter
10WPW10453948 Whirlpool Knob
11W11693756 Whirlpool Screw Assembly
12WP90767 Whirlpool Screw
13WP8563663 Whirlpool Top Assembly
14BRACKET, HARNESS
15SEAL, HARNESS
16WPW10450286 Whirlpool Wire Harness
17WP693995 Whirlpool Screw
18W11213336 Whirlpool Nut
193389682 Whirlpool Spacer
20W10316616 Whirlpool Seal
21WPW10416486 Whirlpool Rear Panel
