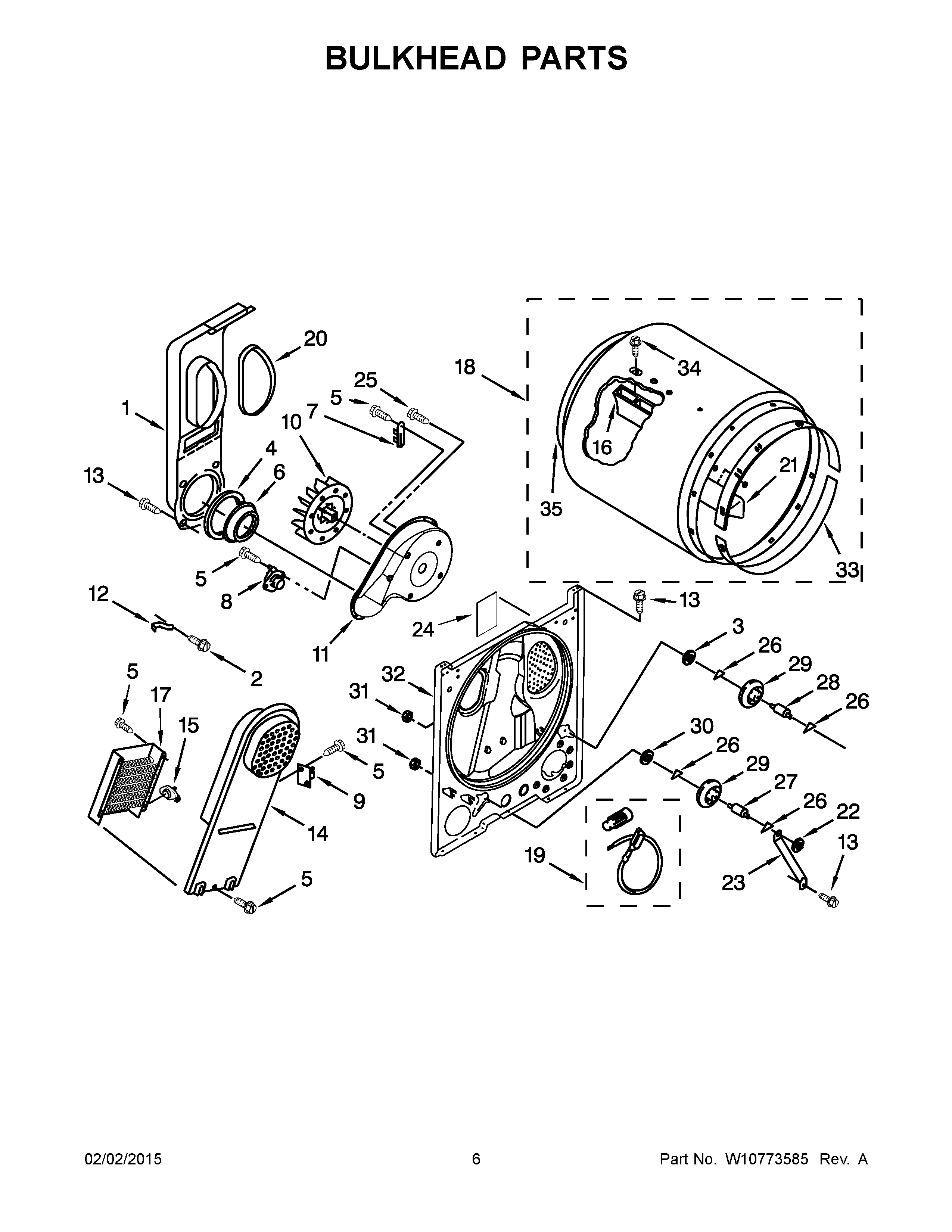

RED4645EW0 04 – BULKHEAD PARTS

RED4645EW0 04 – BULKHEAD PARTS

Written by

in

RED4645EW0 04 – BULKHEAD PARTS

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP489463 Whirlpool Refrigerator Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP3387134 Whirlpool Dryer Cycling Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12CLIP, HEATER BOX
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
16BAFFLE-DRM
17279838 Whirlpool Dryer Heating Element 5400W
18W10899578 Whirlpool Dryer Drum Assembly
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20SEAL
21WP3403636 Whirlpool Drum Baffle
22WP90296 Whirlpool Clip
23W11684613 Whirlpool Bracket
24W11409002 Whirlpool Pad
25WP488729 Whirlpool Refrigerator Door Screw
26WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27SHAFT SUPPORT ROLLER DRYER
28SHAFT SUPPORT ROLLER DRYER
29349241T Whirlpool Dryer Drum Support Roller Kit
30WP348197 Whirlpool Washer Assembly
31W11229607 Whirlpool Nut
32W11178667 Whirlpool Bulkhead Assembly
33279441 Whirlpool Front Bearing Ring
34W10853898 Whirlpool Screw
35W10612022 Whirlpool Felt Seal
