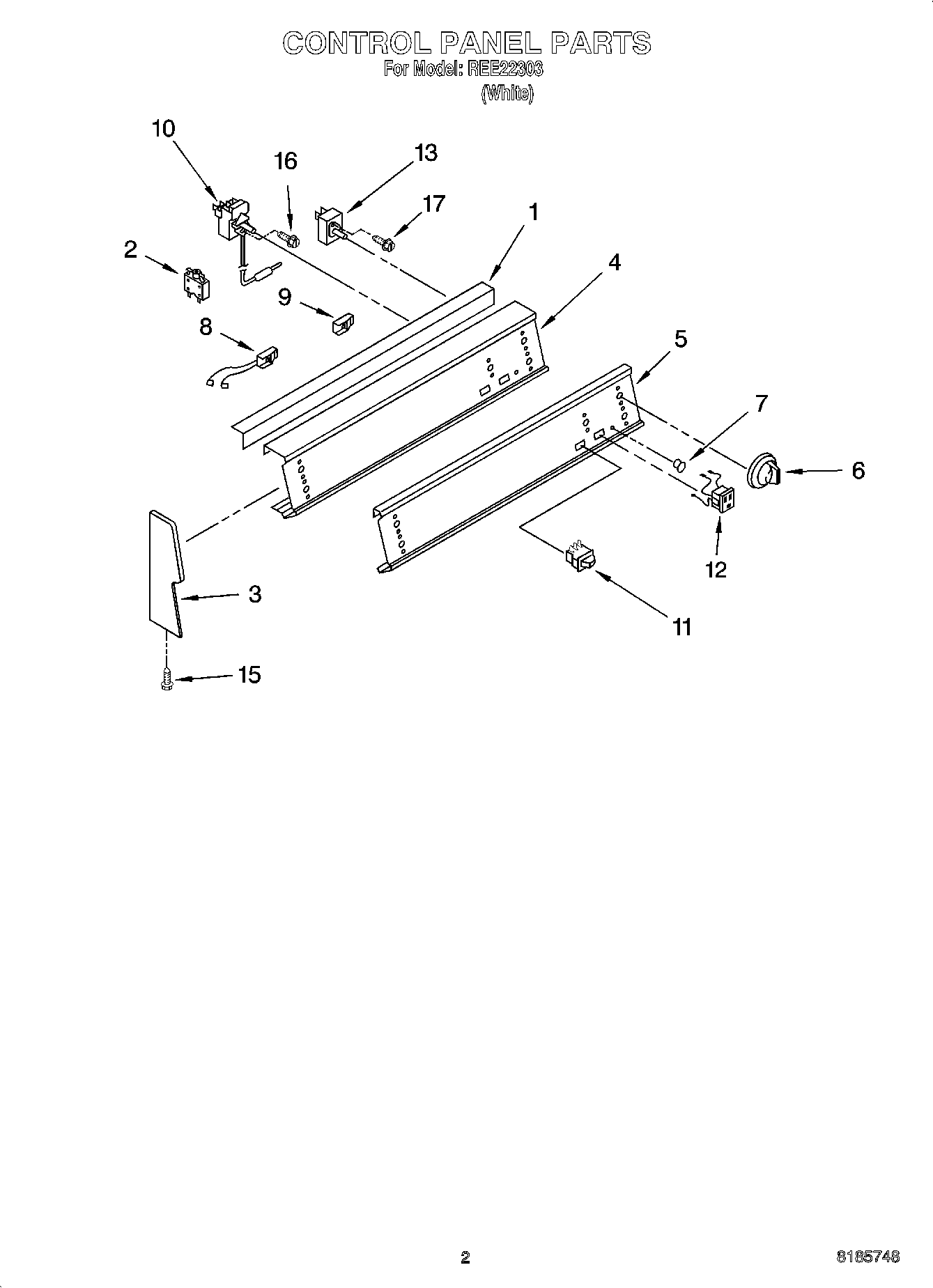

REE22303 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Lamp Cover, Black
2	Breaker, 15 Amp
3	End Cap R.H.
3	End Cap L.H.
4	Panel, Control
5	Panel, Control (Faceplate)
6	Knobs, Control (5)
7	WP9750343 Whirlpool Light Lens
8	Light, Indicator (Oven - Thermostat)
9	Light, Indicator (Surface Unit (2))
10	Thermostat
11	Switch, Oven Light
12	Outlet, Untimed
13	WP9750641 Whirlpool Infinite Switch
13	WP9750638 Whirlpool Infinite Switch
15	WP4159387 Whirlpool Compactor Screw
16	Screw (2)
17	WP3400882 Whirlpool Screw
