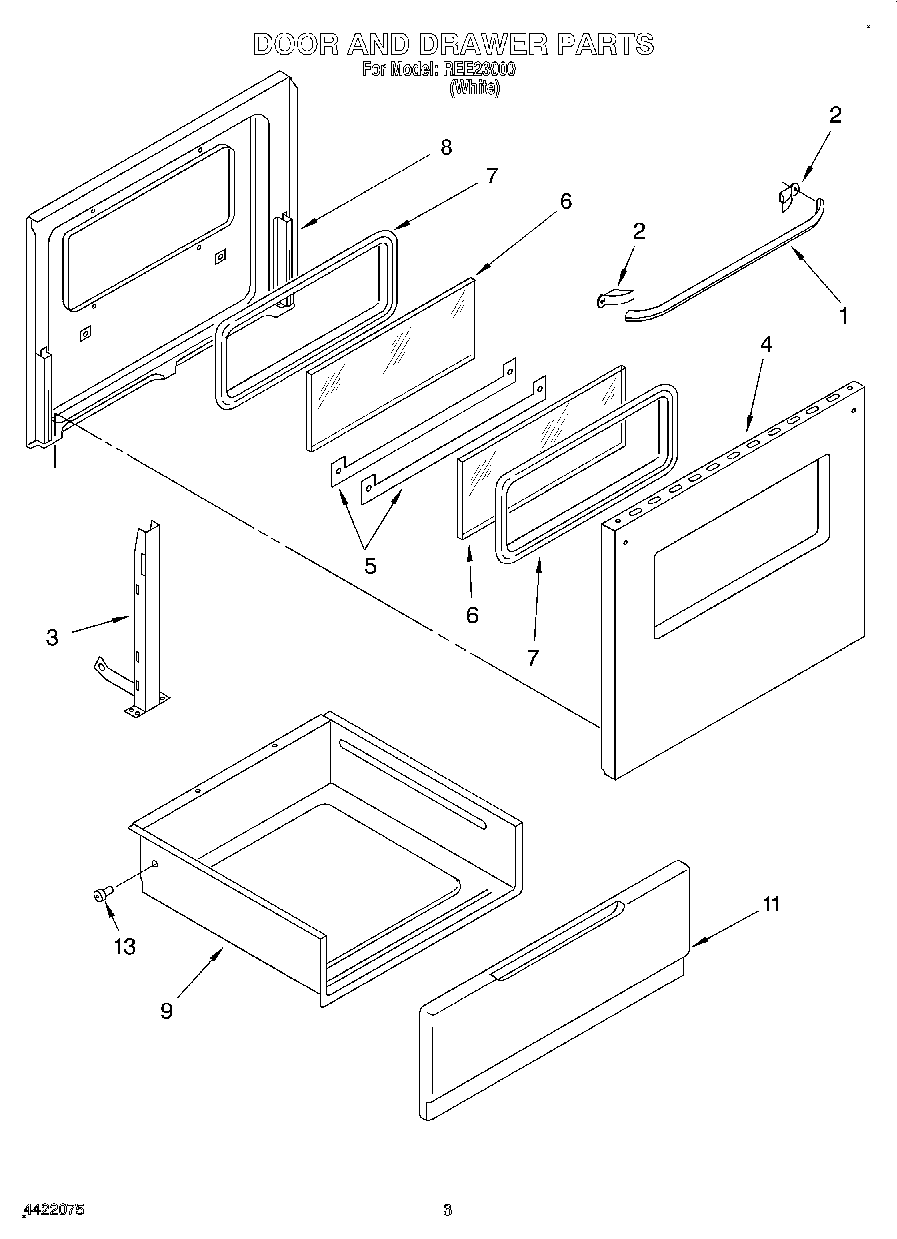

REE23000 03 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Door-Black
2	screw (2) 10-24 x 5/8
2	End Cap, Handle (R or L)
3	Hinge, Door R or L
4	Panel, Door (White)
4	Back Splash (Screw (4) 10AB x 1/2“)
5	Frame, Glass (Inner – Outer)
5	Screw
6	Glass, Inner-Outer
7	Gasket, Oven Glass
8	Liner, Door
8	WP4159387 Whirlpool Compactor Screw
9	Drawer & Roller
11	Front, Drawer
11	Screw (4) 10 x 3/8
11	WP90296 Whirlpool Clip
13	814229 Whirlpool Primary Roller
