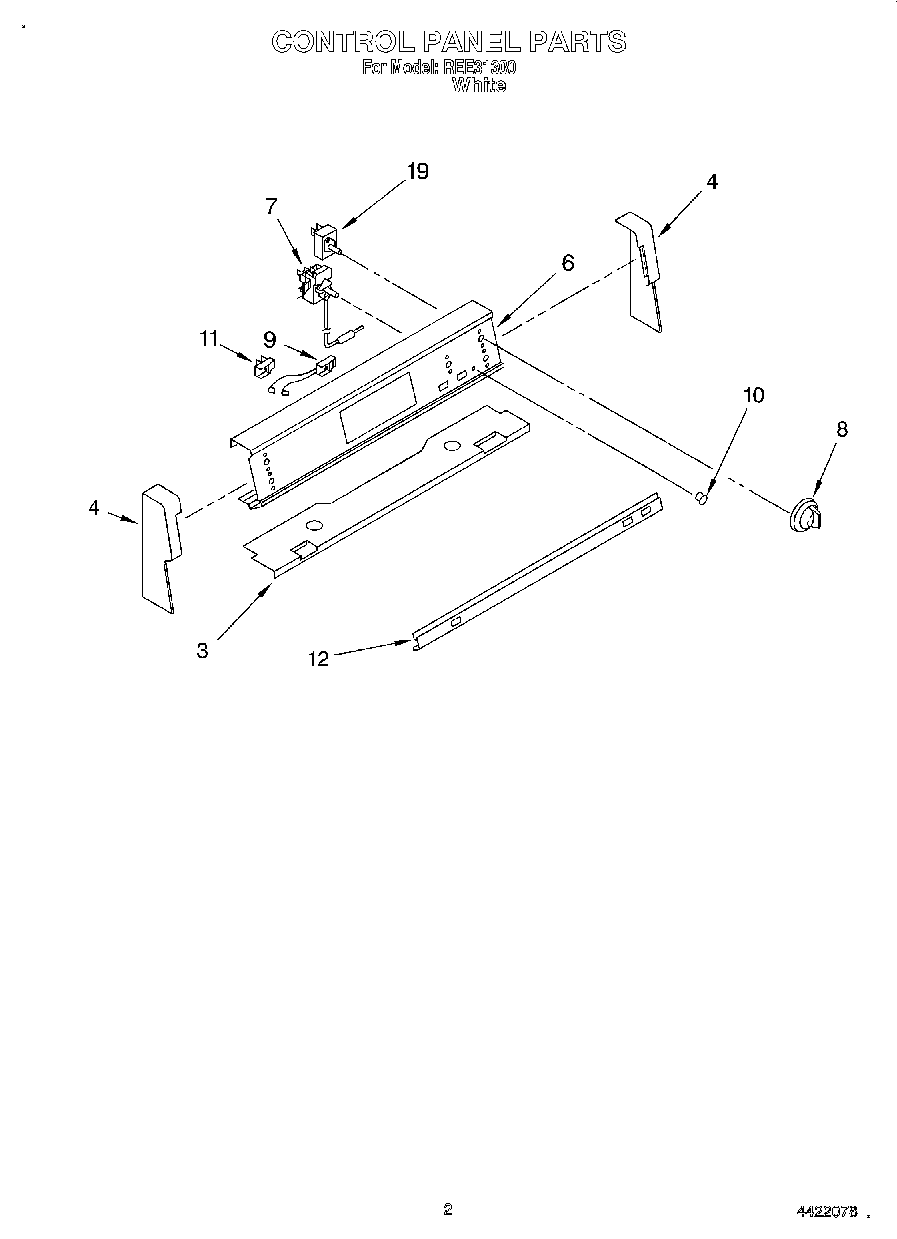

REE31300 02 – CONTROL PANEL

REE31300 02 – CONTROL PANEL

Written by

in

REE31300 02 – CONTROL PANEL

Products

PositionProduct
3Base, Console
3WP3400832 Whirlpool Screw
4WP4159387 Whirlpool Compactor Screw
4End Cap (Left)
4End Cap (Right)
6Panel, Control
6Panel, Control (Screw, (2) 8 x 3/8)
7Thermostat
8Knobs, Control (5)
9Light, Indicator (Oven – Thermostat)
10WP9750343 Whirlpool Light Lens
11Light, Indicator (Surface Unit (2))
12Trim Strip
19WP9750641 Whirlpool Infinite Switch
19WP9750638 Whirlpool Infinite Switch
19WP3400882 Whirlpool Screw
19Infinite Switch (Screw (8) 8-32 x 3/16)
