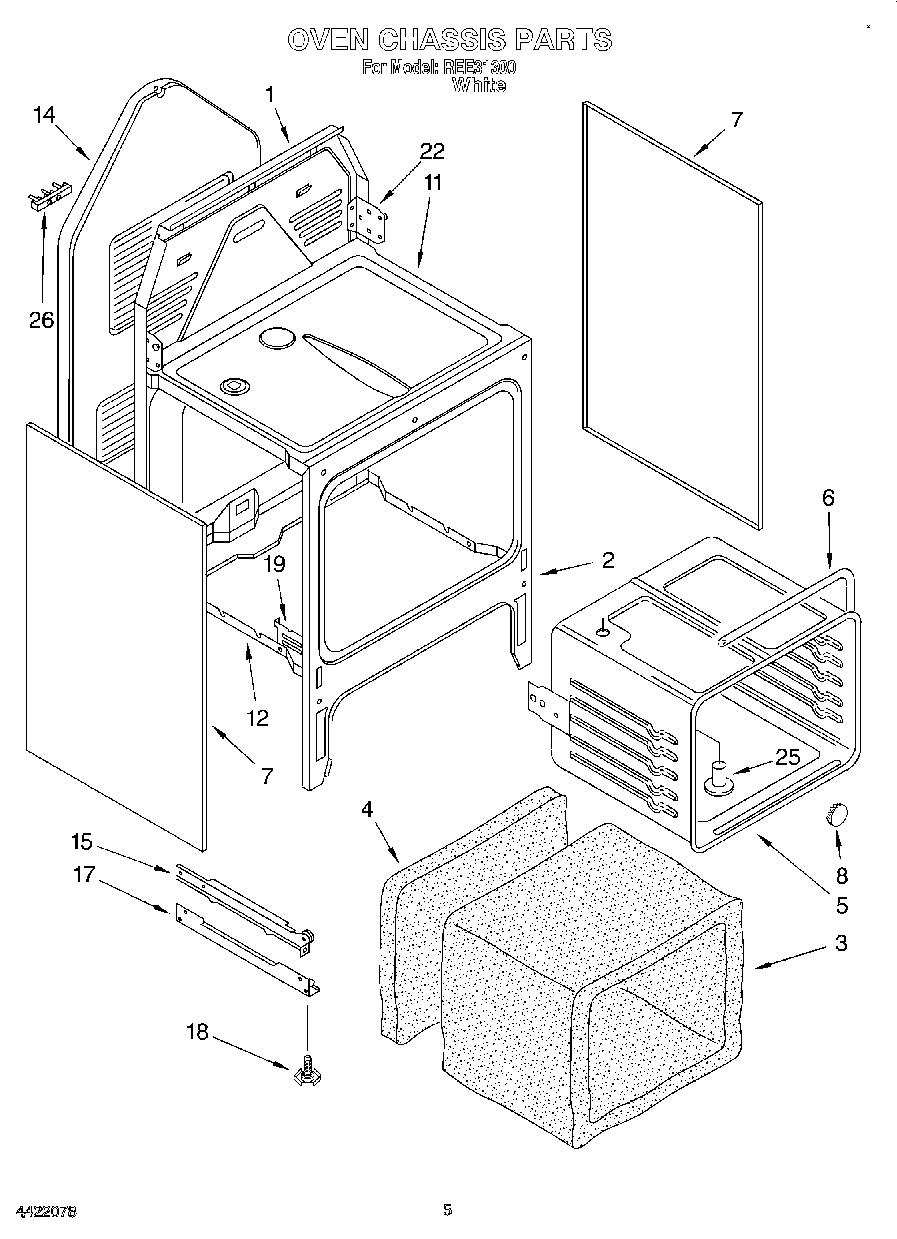

REE31300 04 – OVEN CHASSIS
Written by
in
REE31300 04 – OVEN CHASSIS
Products
Position
Product
1
Main Chassis, Back
2
Chassis, Front
3
WPL 9750392
4
WPL 9750388
5
Oven Liner
6
Gasket, Oven
7
Oven , Side L or R (White)
8
Button, Plug
8
Button, Plug (36.5 MM)
11
Burner Box
11
Screw, (2)
12
Oven Bottom
14
Panel, Rear
15
Rail, Drawer (Right)
15
Drawer Rail, Left
17
Bottom Rail (2)
18
WPW10058460 Whirlpool Appliance Levelling Leg
19
Hinge, Receiver (2)
19
Screw (4) 10 x 1/2
22
Hinge, Cktp.-Left
22
Hinge, Cktp.-Right
22
WP4159387 Whirlpool Compactor Screw
25
Vent Tube
26
WP8203546 Whirlpool Terminal Block
26
Screw, (2) 10-16 x 1
26
WP112432 Whirlpool Nut Assembly
←
