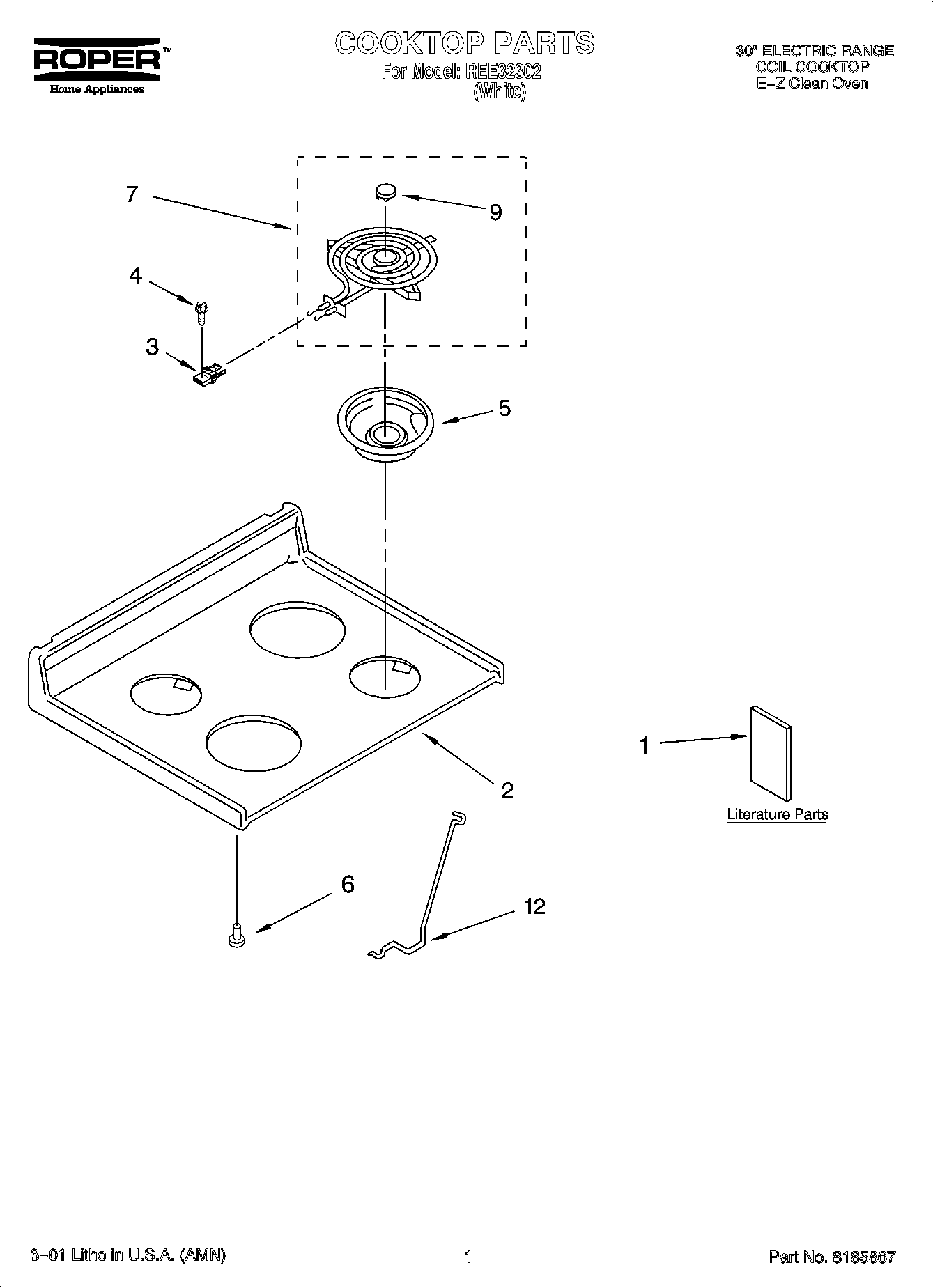

REE32302 01 – COOKTOP PARTS

Products

Position	Product
1	WPL LIT3189944
1	WPL LIT9752776
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	Cooktop, Coil
3	Receptacle, Clip
4	WP313808 Whirlpool Screw
5	DRIP BOWL 8" W/HOLE CHROME
5	WPW10196406 Whirlpool 6" Chrome Drip Bowl
6	238614 Whirlpool Bumper Hinge
7	Element, Surface (Coil, 8`` LF-RR)
7	Element, Surface (Coil, 6`` LR-RF)
9	Medallion, (4)
12	Guard, Wire
