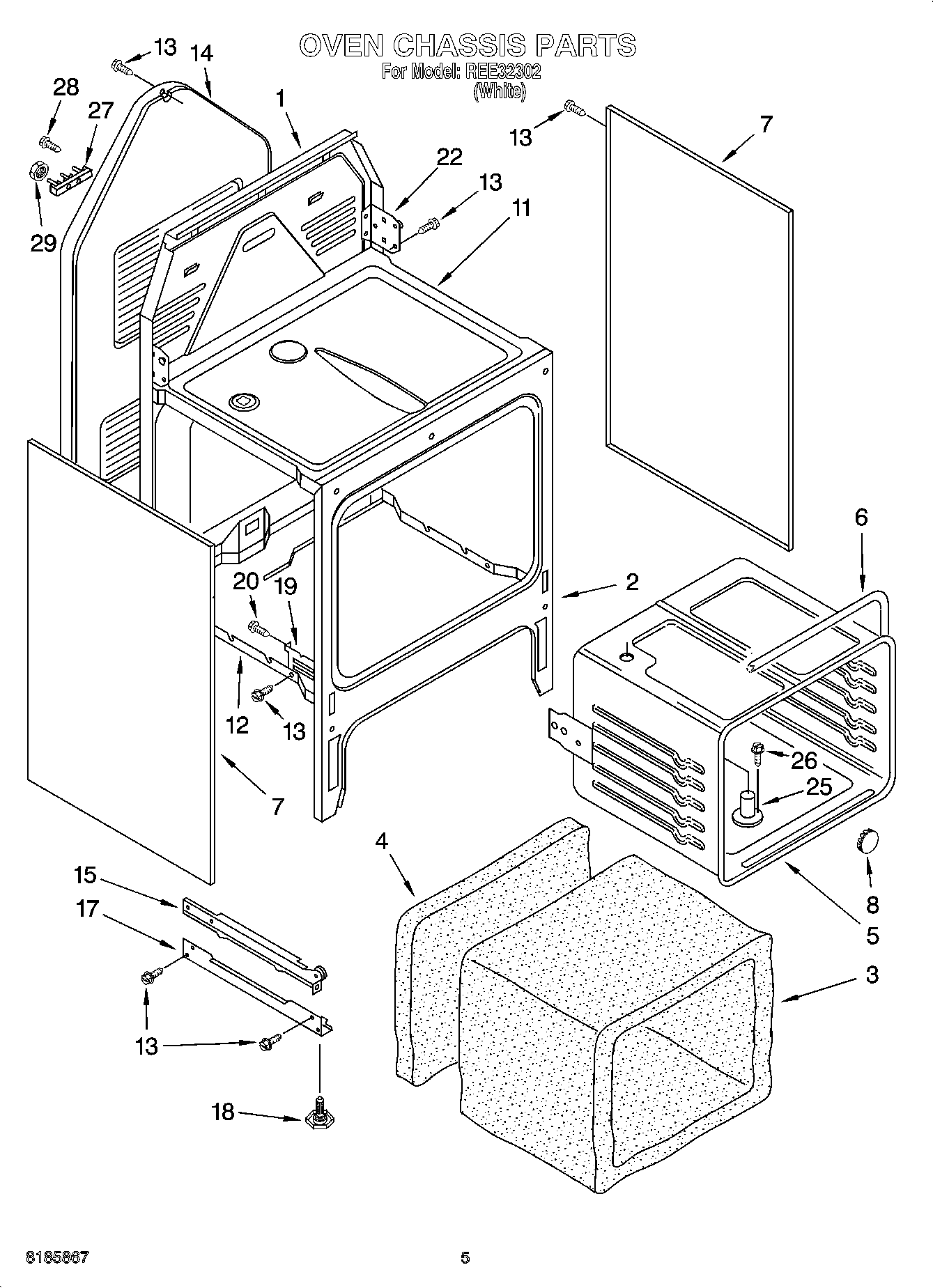

REE32302 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (White)
8	Button, Plug
11	Burner Box
12	Oven Bottom
13	WP4159387 Whirlpool Compactor Screw
14	Panel, Rear
15	Drawer Rail, Left
15	Rail, Drawer (Right)
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Screw (4) 10 x 1/2
22	Hinge, Cktp.-Right
22	Hinge, Cktp.-Left
25	Vent Tube
26	Screw
27	WP8203546 Whirlpool Terminal Block
28	Screw, (2) 10-16 x 1
29	WP112432 Whirlpool Nut Assembly
