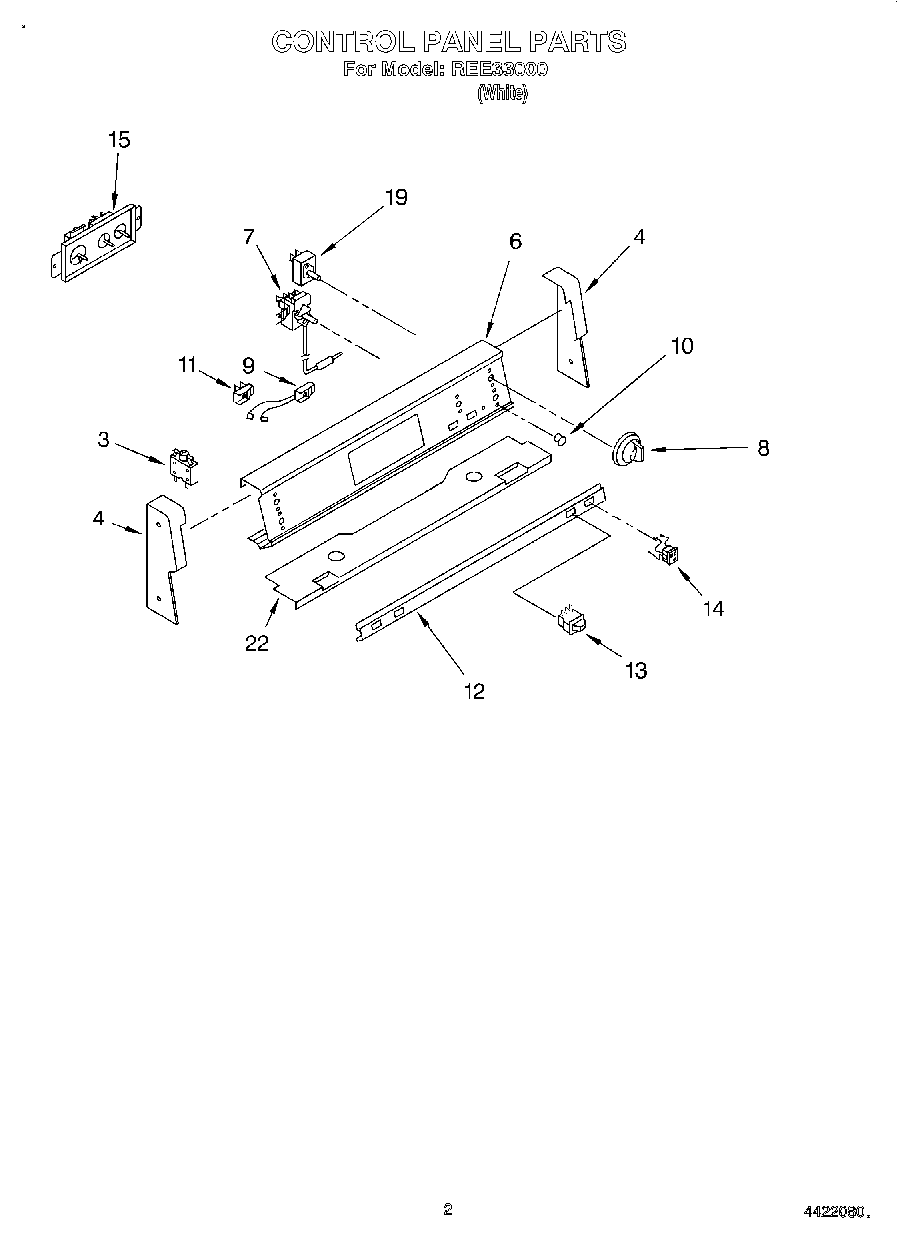

REE33000 02 – CONTROL PANEL

Products

Position	Product
3	Breaker, 15 Amp
4	End Cap (Right)
4	End Cap (Left)
6	Panel, Control
6	Panel, Control (Screw, (2) 8 x 3/8)
7	Thermostat
8	Knobs, Control (6)
9	Light, Indicator (Oven – Thermostat)
10	WP9750343 Whirlpool Light Lens
11	Light, Indicator (Surface Unit (2))
12	Trim Strip
13	Switch, Oven Light
14	Outlet, Untimed
15	Timer / Clock
15	WP4159387 Whirlpool Compactor Screw
19	WP3400882 Whirlpool Screw
19	WP9750638 Whirlpool Infinite Switch
19	WP9750641 Whirlpool Infinite Switch
19	Infinite Switch (Screw (8) 8-32 x 3/16)
22	WP3400832 Whirlpool Screw
22	Base, Console
