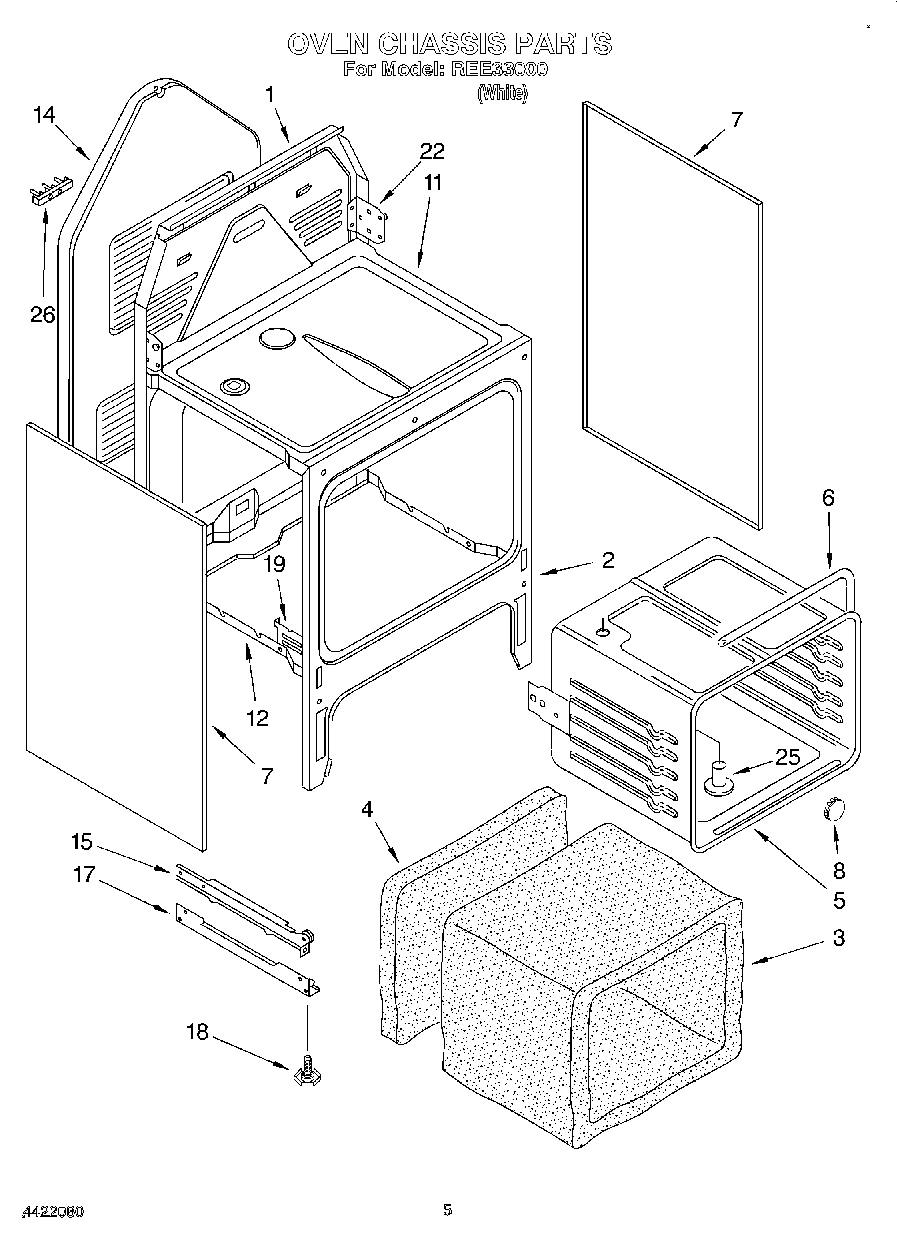

REE33000 04 – OVEN CHASSISadmin2025-04-26T08:45:38+00:00REE33000 04 – OVEN CHASSIS
Products
| Position | Product |
|---|
| 1 | Main Chassis, Back |
| 2 | Chassis, Front |
| 3 | WPL 9750392 |
| 4 | WPL 9750388 |
| 5 | Oven Liner |
| 6 | Gasket, Oven |
| 7 | Oven , Side L or R (White) |
| 8 | Button, Plug |
| 11 | Burner Box |
| 11 | Screw, (2) |
| 12 | Oven Bottom |
| 14 | Panel, Rear |
| 15 | Drawer Rail, Left |
| 15 | Rail, Drawer (Right) |
| 17 | Bottom Rail (2) |
| 18 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 19 | Hinge, Receiver (2) |
| 19 | Screw (4) 10 x 1/2 |
| 22 | Hinge, Cktp.-Left |
| 22 | Hinge, Cktp.-Right |
| 22 | WP4159387 Whirlpool Compactor Screw |
| 25 | Vent Tube |
| 26 | Screw, (2) 10-16 x 1 |
| 26 | WP8203546 Whirlpool Terminal Block |
| 26 | WP112432 Whirlpool Nut Assembly |
