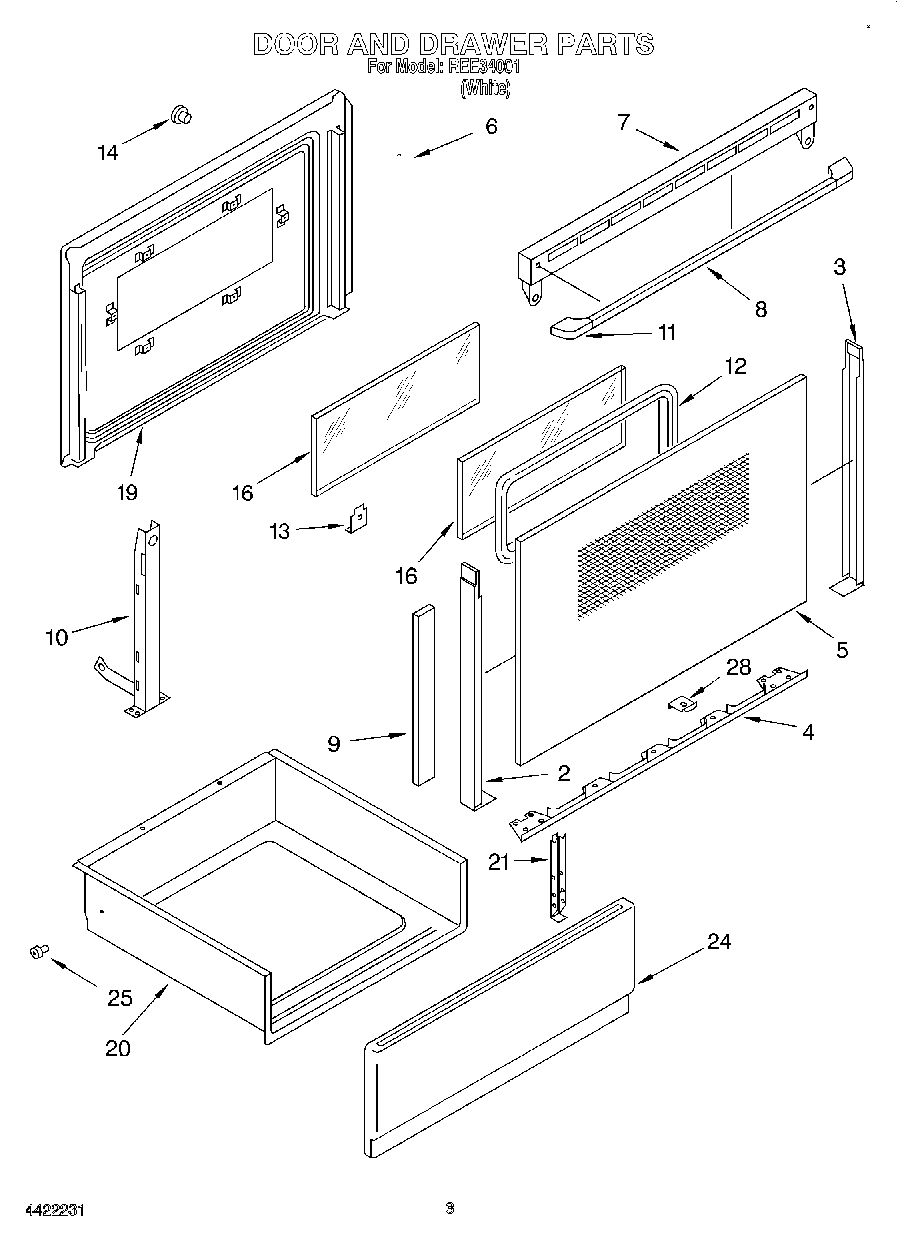

REE34001 03 – DOOR AND DRAWERadmin2025-04-26T08:46:12+00:00REE34001 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 2 | Trim, Door-Left (Black) |
| 3 | Trim, Door-Right (Black) |
| 4 | Trim, Door Bottom (Black) |
| 5 | Glass, Door Front (Black) |
| 6 | Retainer, Glass |
| 7 | Vent, Door (Seal, Door Vent Side) |
| 7 | Vent, Door (Gasket, Vent) |
| 7 | Vent, Door (Black) |
| 8 | screw (2) 10-24 x 5/8 |
| 8 | Handle, Door |
| 9 | Gasket, Door Glass |
| 10 | Hinge, Door R or L |
| 11 | End Cap, Handle (R or L) |
| 13 | WP4159387 Whirlpool Compactor Screw |
| 13 | Retainer, Glass (4) |
| 14 | 238614 Whirlpool Bumper Hinge |
| 16 | Inner Glass, Clear |
| 19 | Liner, Door |
| 20 | Drawer & Roller |
| 21 | Bracket, Drawer |
| 21 | Screw (4) 10 x 1/2 |
| 21 | WP90296 Whirlpool Clip |
| 24 | Front, Drawer (White) |
| 25 | 814229 Whirlpool Primary Roller |
| 28 | Spacer, Door (8) |
