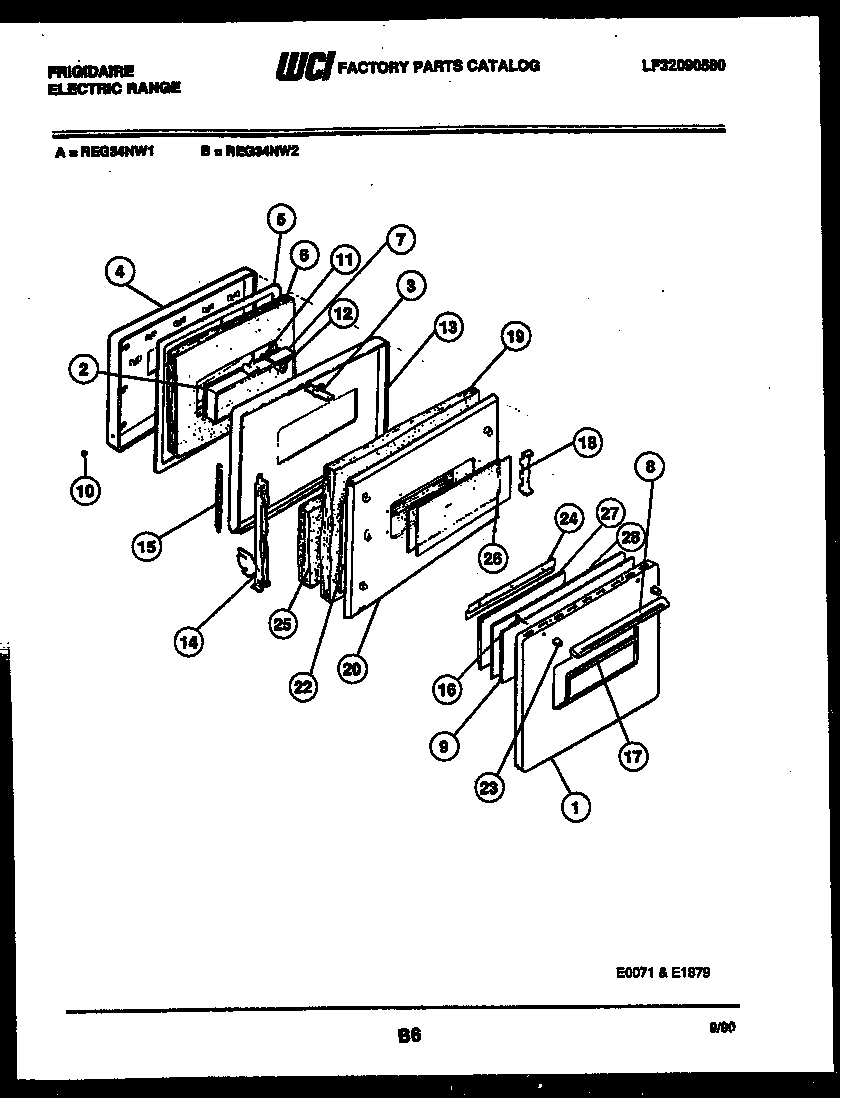

REG34NW1 04 – DOOR PARTS

Products

Position	Product
1	WCI 08003150
2	WCI 3051706
3	WCI 5301167830
4	WCI 3017634
5	WCI 3206078
6	WCI 3008673
7	GLASS PACKAGE
8	HANDLE
9	WCI 5301318805
10	BUTTON PLUG
11	SCREW 10 X 24 (2)
12	WASHER-PADDED (3) (NON-ILLUSTRATED)
13	DOOR LINER
14	HINGE, ASSY (2)
15	WCI 5308003186
16	WCI K5104201
17	MOULDING OUTER GLASS
18	RETAINER, GLASS (2)
19	INSULATION, AIRWASH
20	WCI 3051712
22	FOIL – ALUMINUM J
23	SPACER (2)
24	RETAINERS-GLASS (2)
25	WCI 3008677
26	WCI 5303051713
27	GLASS, OUTER
28	PANEL-INSULATOR PAD
