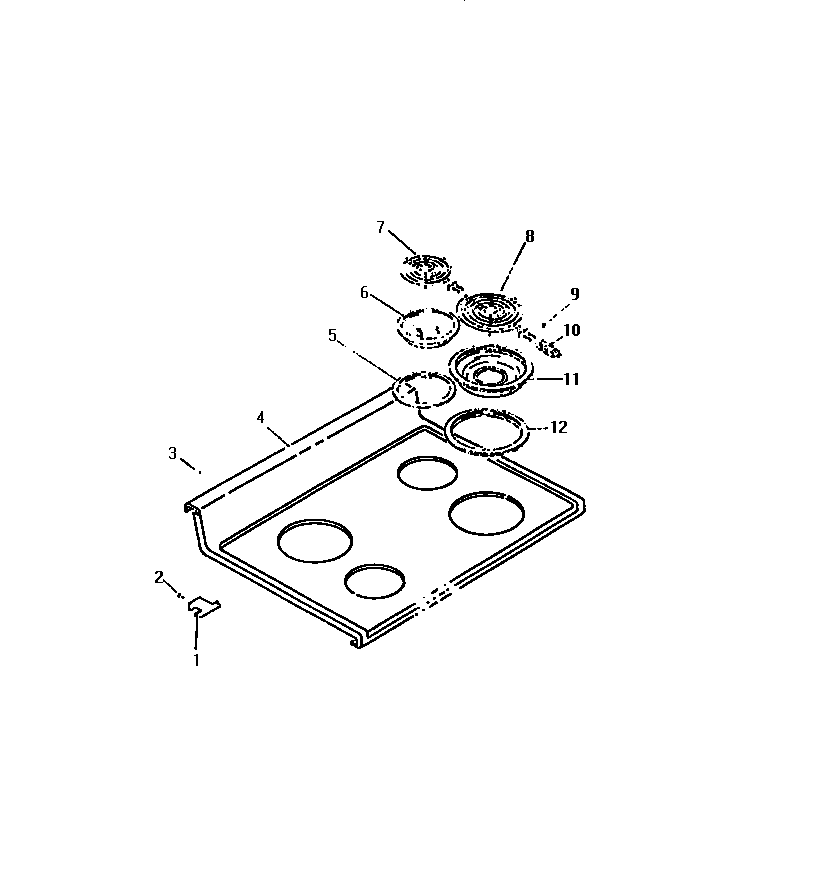

REG36AF2 08 – COOKTOP

Products

Position	Product
1	WCI 8012537
2	SCREWS (2)
3	SCREW, GROUND WIRE
4	WCI 8012523
5	TRIM, 6“ (2)
6	DRIP PAN, 6 “ SURFACE UNIT (2)
7	SURFACE UNIT, 6“ (2)
8	SURFACE UNIT, 8“ (2)
9	SCREWS (4)
10	RECEPTACLE (4)
11	DRIP PAN, 8“ SURFACE UNIT (2)
12	TRIM, 8“ (2)
