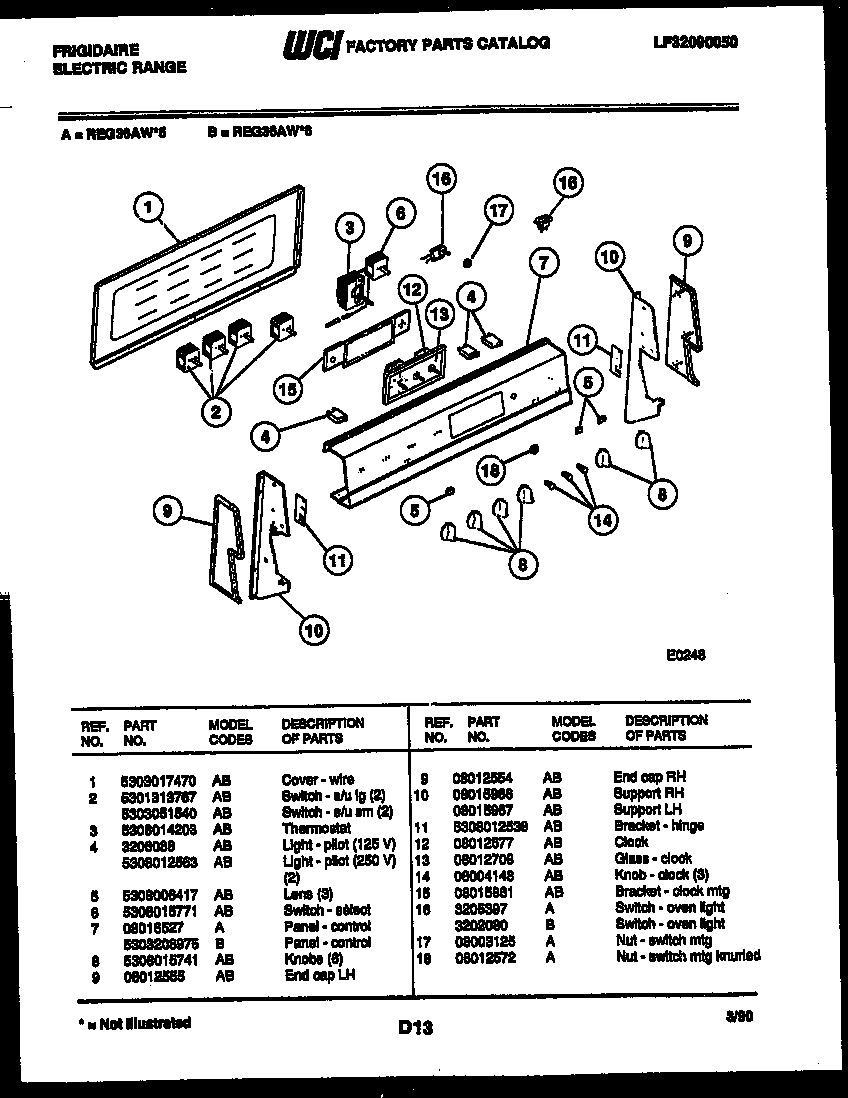

REG36AF5 02 – CONTROL PANEL

Products

Position	Product
1	COVER, WIRE.
2	5303935086 Frigidaire Oven Top Burner Switch Kit
3	WCI 5308014203
4	IND LITE SURF UNIT
4A	LIGHT-PILOT OVEN & CLEAN
5	LENS (2)
6	WCI 5308015771
7	WCI 08016527
8	WCI 5308015741
9	WCI 08012555
9	WCI 08012554
10	SUPPORT RH
10A	SUPPORT LH
11	BRACKET, HINGE (2)
12	WCI 08012577
13	WCI 08012708
14	WCI 08004148
15	BRACKET-MTG CLOCK
16	WCI 3205397
17	WCI 08003125
18	NUT-KNURLED
