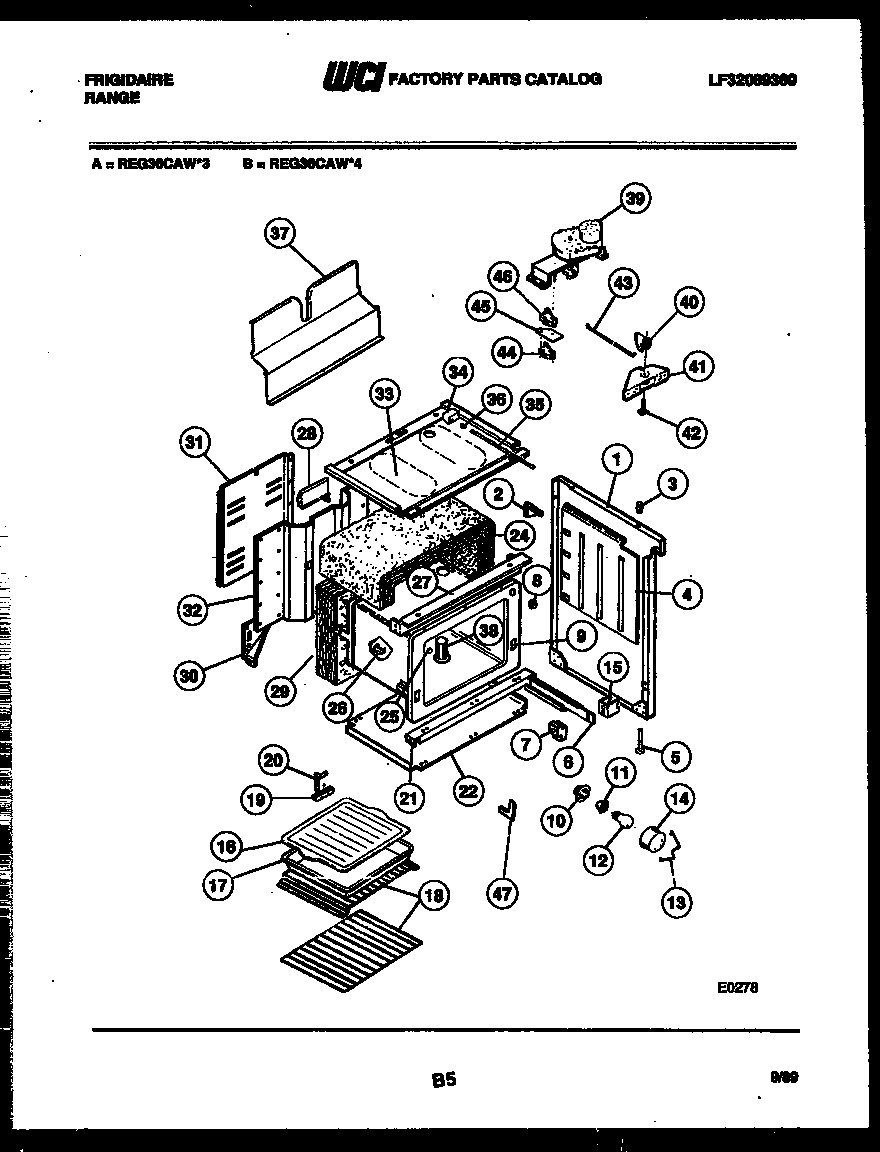

REG36CAW4 07 – BODY PARTS

Products

Position	Product
*26206	ANTI-TIP KIT, (NON-ILLUSTRATED)
1	WCI 08012527
1A	WCI 08012528
3	BUMPER – COOKTOP (4)
4	WCI 08012235
5	LEG, LEVELLER (4)
6	WCI 08015746
6A	RAIL, DRAWER LH
7	WCI 08003103
8	PLUG BUTTON – OVEN LIGHT HOLE
9	OVEN LINER
10	CUP – OVEN LIGHT
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	WCI 08011087
14	5304524341 Frigidaire Lens
15	WCI 08011055
16	GRILLE, BROILER
17	WCI 3205232
18A	RACK-OFFSET
18	316067902 Frigidaire Oven Rack
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08003146
21	CHANNEL – OVEN SUPPORT LOWER
22	PNL – BOTTOM
22	WCI 3203574
24	WCI 3051628
25	WCI 08003144
26	BRKT-THERMO BULB
27	WCI K1325636
28	WCI K5134501
29	INSULATION-OVEN BACK
30	WCI 3017481
30A	WCI 3017482
31	COVER – WIRE
32	WCI 3017535
33A	WCI 08002847
33	WCI 08012542
34	SWITCH – DOOR
35	WCI 08007445
36	WCI 08007444
37	WCI 3206095
38	TUBE-OVEN VENT
39	MOTOR-LATCH
40	WCI 08015744
41	HOUSING-DOOR LATCH
42	WCI 08012004
43	WCI 3051649
44	WCI 08003092
45	WCI 08003090
46	WCI 3007889
47	WCI 3051810
