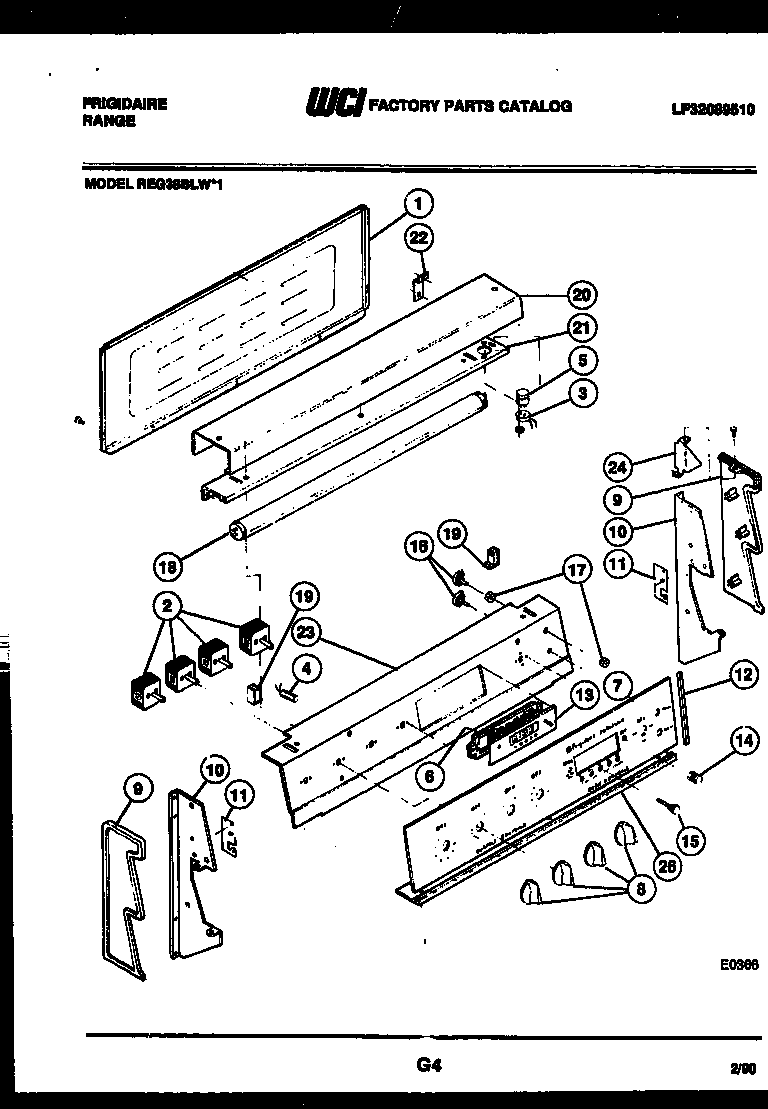

REG38BLW1 02 – BACKGUARD

REG38BLW1 02 – BACKGUARD

Written by

in

REG38BLW1 02 – BACKGUARD

Products

PositionProduct
*29295WCI 3205136
1WCI 3017470
2SWITCH S/U SMALL (2)
2ASWITCH S/U LARGE (2)
3BASE-FLUOR LIGHT STARTER
4ALIGHT-PILOT S/U
4LIGHT/LAMP, INDICATOR, 250 V
5STARTER-FLUOR LIGHT
6WCI 3206118
7WCI 5303207516
8WCI 5303207515
9AWCI 08015974
9WCI 08015975
10ASUPPORT LH
10SUPPORT RH
11WCI 08012538
12TRIM-CONTROL PANEL
13WCI 3205213
14KNOB – CLOCK (GRAY)
15BUTTON – CLOCK (GRAY) (8)
16WCI 08003383
17NUT-KNURLED
18WCI 08012712
19RECEPTACLE-LAMP, RH / LH
20WCI 08017091
21SUPPORT-RECEPTABLE
22WCI 08017090
23PLATE, INSTUMENT MTG
24BRACKET-BACKGUARD, (2)
26BASE PLATE-CONTROL PANEL
