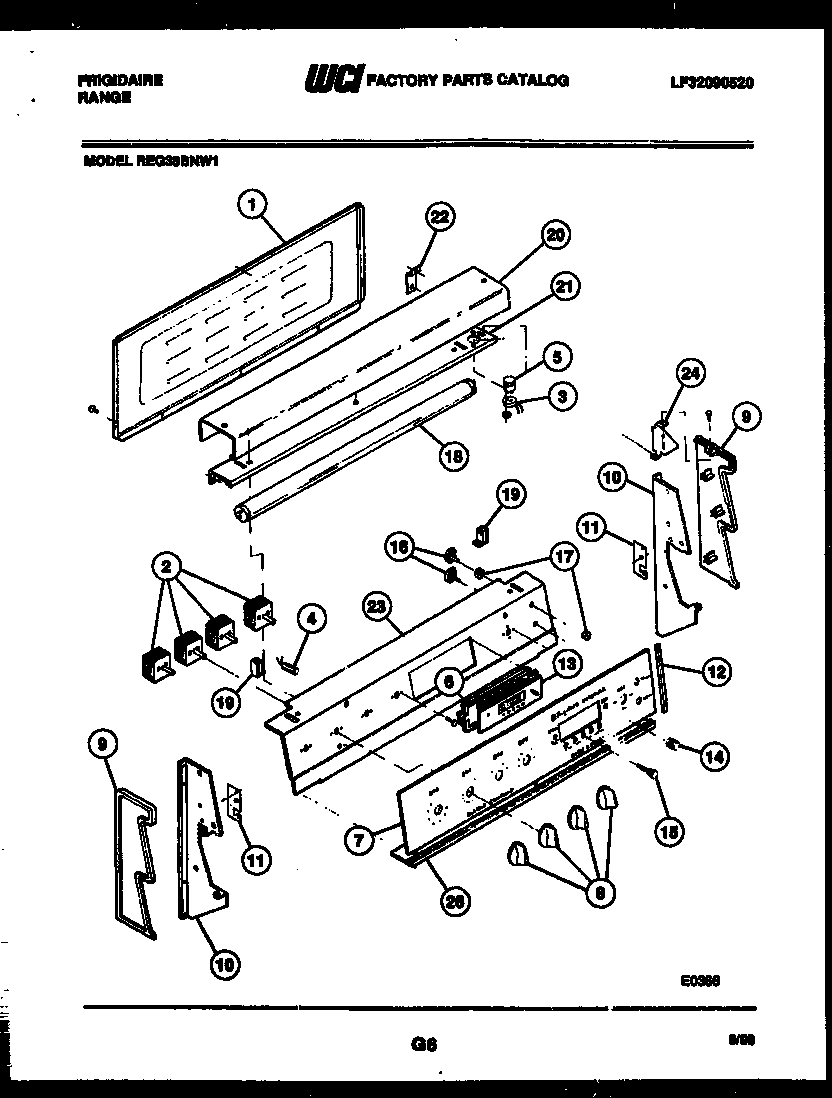

REG38BNW1 02 – BACKGUARD

Products

Position	Product
*34045	WCI 3205136
1	COVER, WIRE.
2	SWITCH-6“ ELEMENT
2A	SWITCH-8“ ELEMENT
3	BASE-FLUOR LIGHT STARTER
4	LIGHT/LAMP, INDICATOR, 250 V
5	WCI 3201543
6	WCI 3206118
7	WCI 5303211909
8	KNOBS-GRAY & BURGUNDY (6)
9	WCI 08015975
9A	WCI 08015974
10	SUPPORT RH
10A	SUPPORT – LH
11	BRACKET, HINGE (2)
12	TRIM-CONTROL PANEL
13	WCI 3205213
14	KNOB – CLOCK (GRAY)
15	BUTTON – CLOCK (GRAY) (8)
16	SWITCH-FLUOR LIGHT & OVEN LIGHT (2)
17	NUT-KNURLED
18	LAMP-FLUORESCENT, BACKGROUND
19	RECEPTACLE-LAMP, RH / LH
20	WCI 5303210112
21	SUPPORT-RECEPTABLE
22	WCI 08017090
23	PLATE, INSTUMENT MTG
24	BRACKET-BACKGUARD, (2)
26	BASE PLATE-CONTROL PANEL
