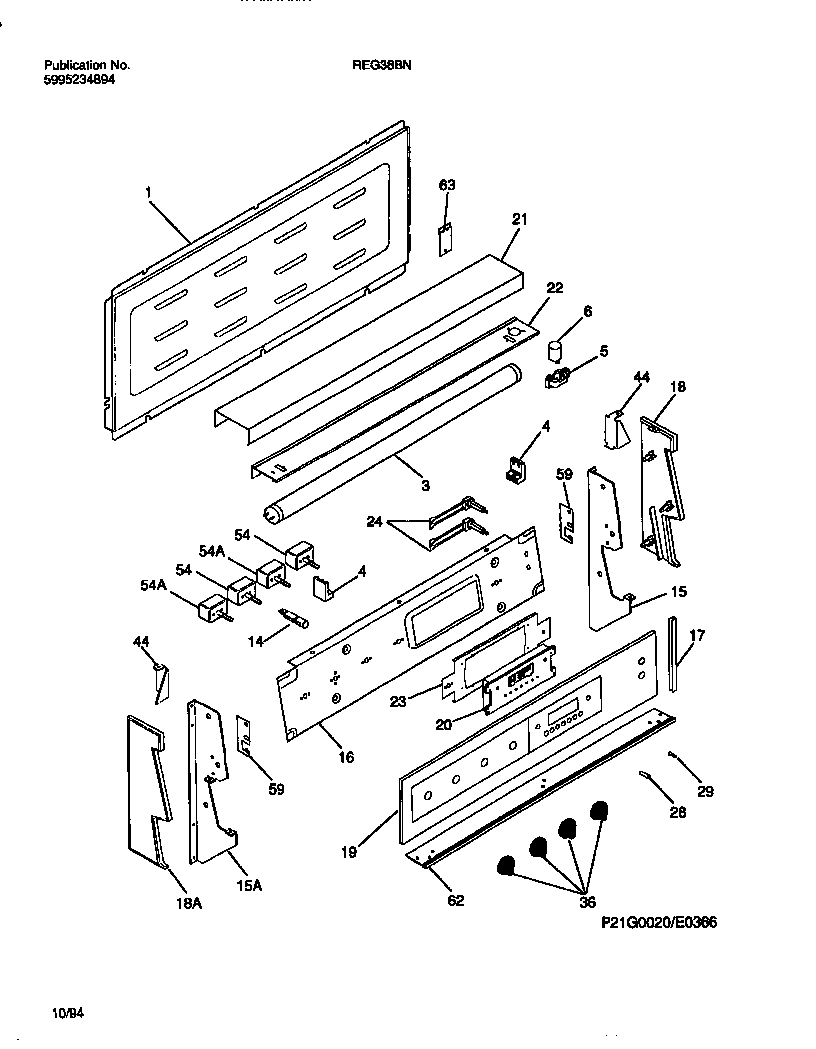

REG38BNW4 02 – BACKGUARD

Products

Position	Product
1	COVER, WIRE.
3	LAMP-FLUORESCENT, BACKGROUND
4	RECEPTACLE-LAMP, RH / LH
5	RECEPTACLE-STARTER
6	STARTER-LAMP
14	LIGHT/LAMP, INDICATOR, 250 V
15	SUPPORT RH
15A	SUPPORT – LH
16	PLATE, INSTUMENT MTG
17	TRIM-CONTROL PANEL
18A	WCI 08015975
18	WCI 08015974
19	WCI 5303211909
20	TIMER 14600 CTL
21	WCI 5303295907
22	SUPPORT-RECEPTABLE
23	WCI 3206118
24A	NUT-KNURLED
24	SWITCH/OVEN LIGHT, PUSH BUTTON, BLACK, FLUOR-OVEN
28	BUTTON – CLOCK (GRAY) (8)
29	KNOB – CLOCK (GRAY)
36	KNOBS (6)
44	BRACKET-BACKGUARD, (2)
54	SWITCH-6“ ELEMENT
54A	SWITCH-8“ ELEMENT
59	BRACKET, HINGE (2)
62	BASE PLATE-CONTROL PANEL
63	WCI 08017090
