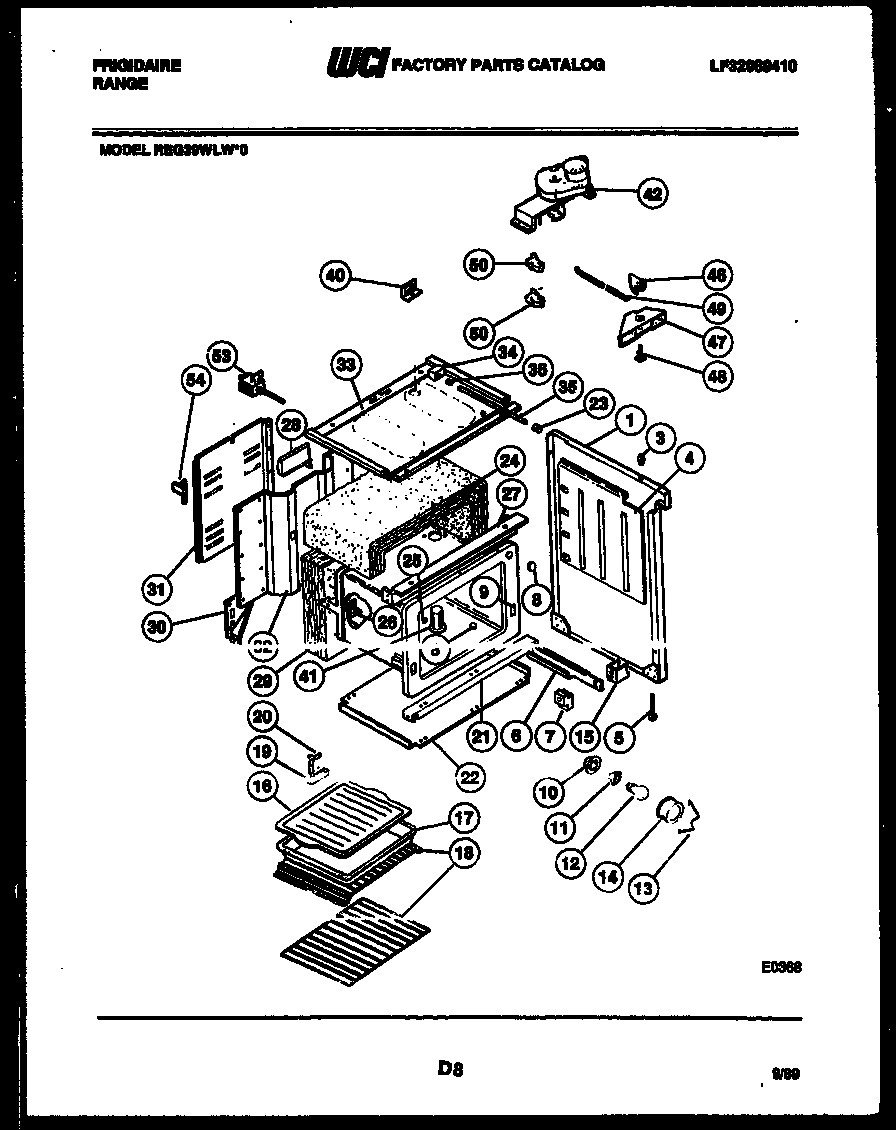

REG39WLW0 06 – BODY PARTS

REG39WLW0 06 – BODY PARTS

Written by

in

REG39WLW0 06 – BODY PARTS

Products

PositionProduct
*26436ANTI-TIP KIT, (NON-ILLUSTRATED)
1WCI 08012527
1AWCI 08012528
3BUMPER – COOKTOP (4)
4RETAINER, INSULATION (2)
5LEG, LEVELLER (4)
6ARAIL, DRAWER LH
6WCI 08015746
7WCI 08003103
8WCI 08003144
9WCI 3205272
10WCI 3051511
11316116400 Frigidaire Oven Light Socket
12316538904 Frigidaire Oven Lamp Light
13WCI 08011087
145304524341 Frigidaire Lens
15WCI 08011055
16WCI 3205234
17WCI 3205232
18ARACK-OFFSET
18316067902 Frigidaire Oven Rack
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08003146
21CHANNEL – OVEN SUPPORT LOWER
22WCI 3203574
23WCI 08067758
24WCI 3051628
25WCI 3051784
26316217002 Frigidaire Oven Temperature Probe
27WCI K1325636
28WCI 3051634
29INSULATION-OVEN BACK
30AWCI 3017482
30WCI 3017481
31COVER – WIRE
32WCI 3205259
33WCI 08012542
34WCI 3205260
35WCI 08007445
36WCI 08007444
40BRACKET-LIGHT SWITCH
41TUBE-OVEN VENT
42LATCH – MOTOR
46WCI 3202387
47HOUSING-DOOR LATCH
48WCI 08003095
49WCI 3051649
50WCI 3202393
53WCI 3204594
54BALLAST-LAMP (NON-ILLUSTRATED)
