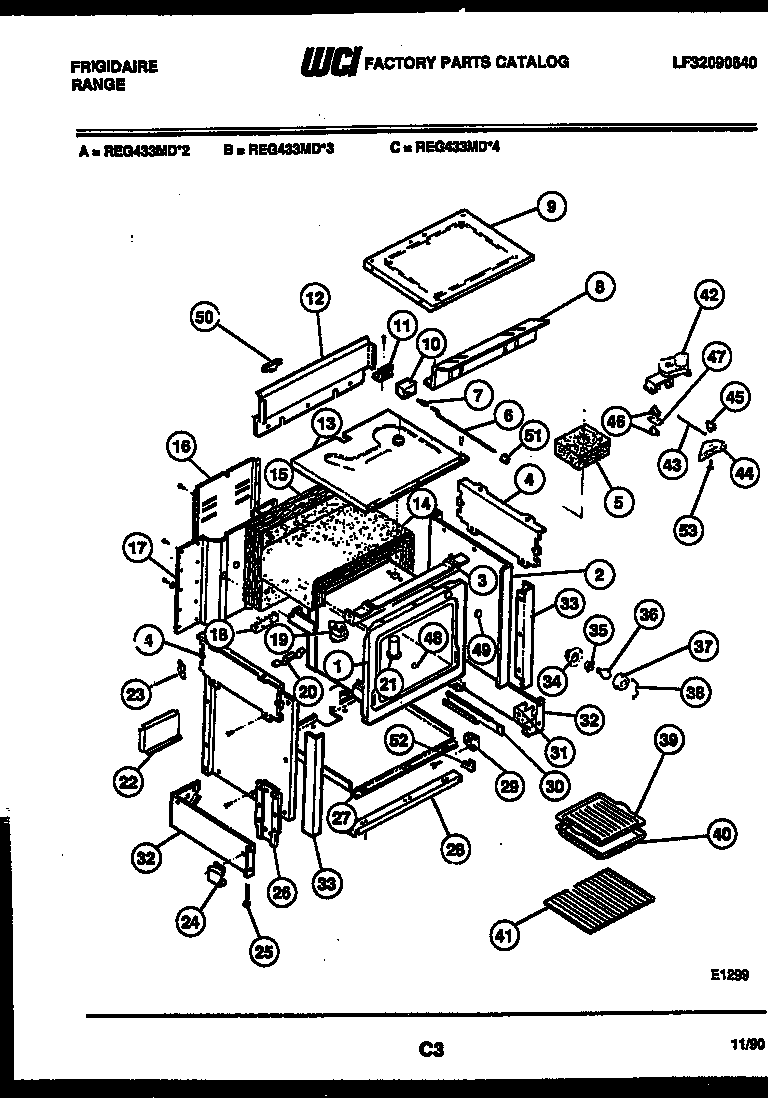

REG433MDW4 02 – BODY PARTS

Products

Position	Product
*10072	ANTI-TIP KIT
1	WCI 3204607
2	SHIELD-INSULATION (2)
3	WCI 08008686
4	WCI 5308015935
5	INSUL.-VENT TUBE
6	ROD-SWITCH
7	WCI 08007444
8	WCI 5305113502
9	WCI 5303051553
10	SWITCH, DOOR
11	BRACKET-DOOR SW
12	BACK-UPPER
13	SHIELD-INSUL. TOP
14	INSULATION-OVEN BACK
15	INSULATION
16	PANEL – WIRE COVER
17	BACK
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	BRACKET-THERMO BULB (2)
20	WCI 08015961
21	VENT TUBE
22	WCI 3051634
23	PLATE-FILLER
24	SHIELD-TOE (2)
25	SCREW-LEVELING (4)
26	WCI 5305080001
27	SHIELD-BOTTOM
28	WCI 08012722
29	GUIDE-DRAWER FRNT (2)
30A	GLIDE – DWR LH
30	GLIDE – DWR RH
31	SPACER, DRAWER RAIL (2)
32	WCI 5301324082
32A	WCI 5301324083
33	WCI 3051777
34	WCI 3051511
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	5304524341 Frigidaire Lens
38	RETAINER-LENS
39	WCI 5303131356
40	PAN-BROILER
41	316067902 Frigidaire Oven Rack
41A	RACK-OFFSET
42	LATCH, MOTOR
43	WCI 3051649
44	HOUSING-DOOR LATCH
45	LATCH-DOOR
46A	SWITCH-LOWER
46	SWITCH – UPPER
47	WCI 08003090
48	BUTTON-PLUG
49	BUTTON-PLUG
50	BRACKT-HNG SUPT
51B	INSULATION-LINER (NON-ILLUSTRATED)
51	WCI 3051251
52	WCI 3051810
53	WCI 08012004
