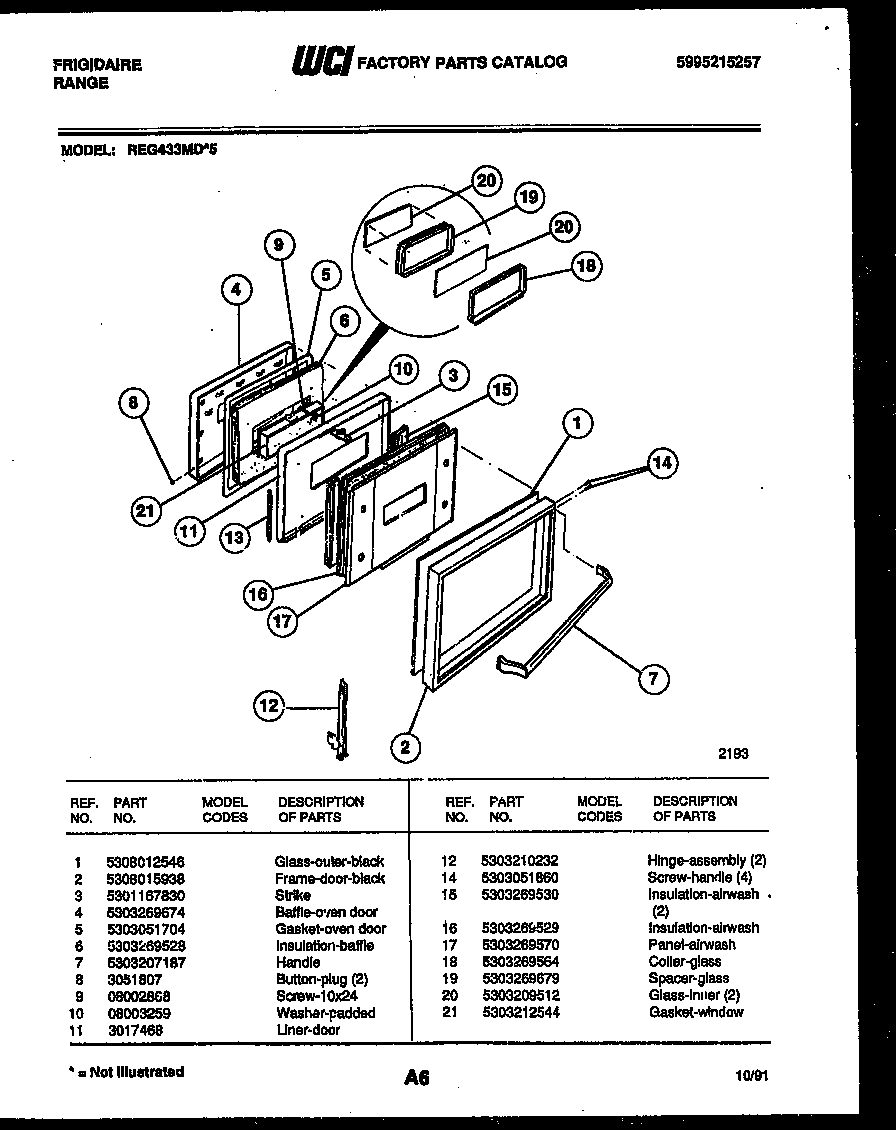

REG433MDW5 05 – DOOR PARTS

REG433MDW5 05 – DOOR PARTS

Written by

in

REG433MDW5 05 – DOOR PARTS

Products

Position	Product
1	GLASS, OUTER, BLACK
2	WCI 5308015938
3	WCI 5301167830
4	WCI 5303269674
5	SEAL, DOOR
6	WCI 5303269528
7	WCI 5303207187
8	BUTTON PLUG
9	08002868 Frigidaire 0 Screw Assembly
10	WASHER-PADDED
11	LINER, DOOR
12	HINGE-ASSEMBLY (2)
14	WCI 5303051860
15	WCI 5303269530
16	INSULATION-AIRWASH
17	WCI 5303269570
18	WCI 5303269564
19	WCI 5303269679
20	GLASS-OVEN DOOR, HEAT BARRIER, (2)
21	GASKET-WINDOW
