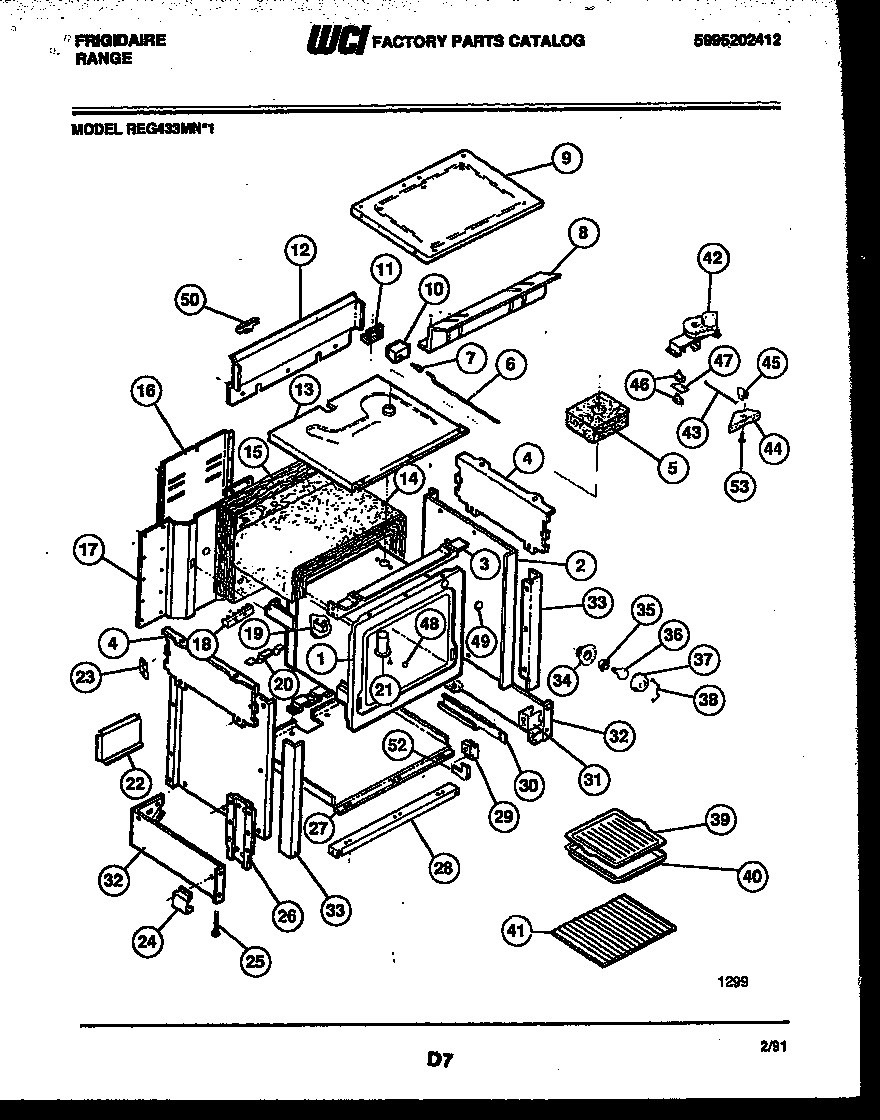

REG433MNW1 05 – BODY PARTS

Products

Position	Product
*41844	WCI 19100210114
1	WCI 3204607
2	SHIELD-INSULATION (2)
3	WCI 08008686
4	WCI 5308015935
5	INSUL.-VENT TUBE
6	ROD-SWITCH
7	WCI 08007444
8	WCI 5303271384
9	WCI 5303051553
10	SWITCH, DOOR
11	BRACKET-DOOR SW
12	BACK-UPPER
13	SHIELD-INSUL. TOP
14	INSULATION
15	INSULATION-OVEN BACK
16	PANEL – WIRE COVER
17	BACK
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	BRACKET-THERMO BULB (2)
20	WCI 08015961
21	VENT TUBE
22	SPACER-DRWR GLIDE (2)
23	PLATE-FILLER
24	WCI 080126736
25	SCREW-LEVELING (4)
26	SUPPORT-FRONT (2)
27	SHIELD-BOTTOM
28	WCI 08012722
29	GUIDE-DRAWER FRNT (2)
30	GLIDE – DWR RH
30A	GLIDE – DWR LH
31	WCI 3051634
32A	WCI 5301324083
32	WCI 5301324082
33	WCI 3051777
34	HOUSING – LIGHT
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	5304524341 Frigidaire Lens
38	RETAINER-LENS
39	WCI 5303131356
40	WCI 5303207208
41	316067902 Frigidaire Oven Rack
41A	RACK-OFFSET
42	LATCH, MOTOR
43	WCI 3051649
44	HOUSING-DOOR LATCH
45	LATCH-DOOR
46	SW-DOOR LATCH (2)
47	WCI 08003090
48	BUTTON-PLUG
49	BUTTON-PLUG
50	BRACKT-HNG SUPT
50A	ANTI-TIP KIT
52	WCI 3051810
53	WCI 08012004
