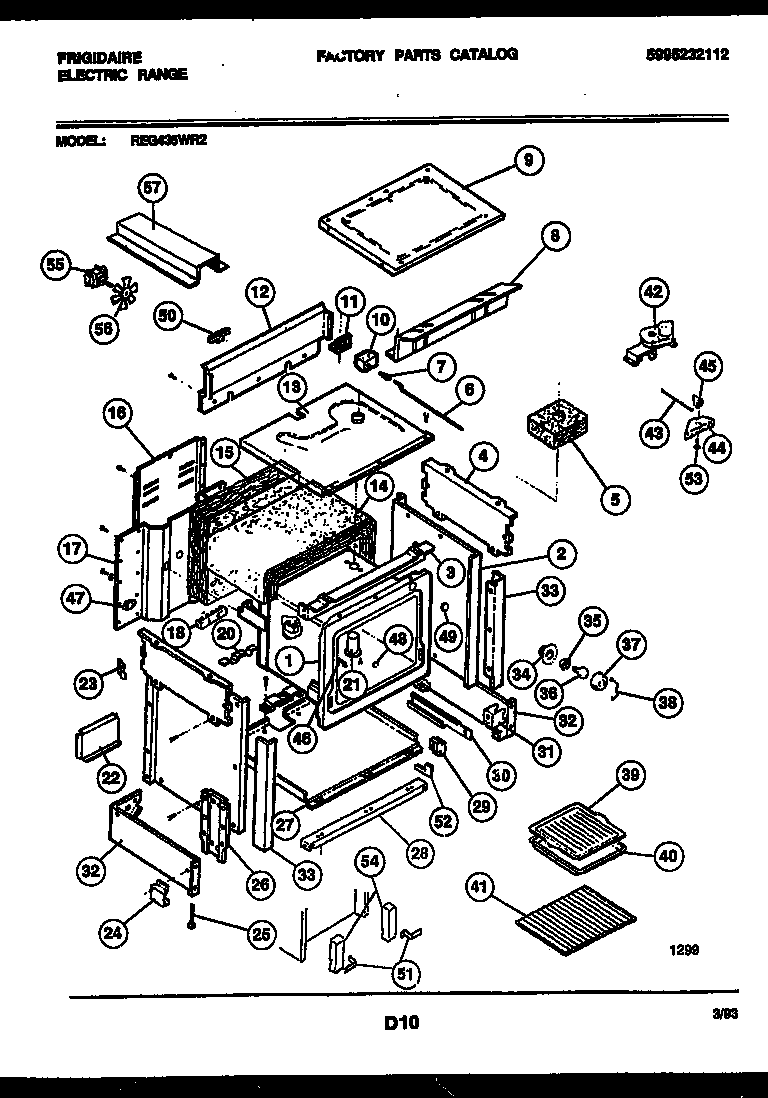

REG435WRW2 05 – BODY PARTS

Products

Position	Product
*74554	ANTI-TIP KIT
*74554	WCI 316007700
*74554	WCI 316002005
*74554	INSULATION-LINER (NON-ILLUSTRATED)
1	WCI 5303293411
2	SHIELD-INSULATION (2)
3	WCI 5303293413
4	WCI 5308015935
5	WCI 3008673
6	ROD-SWITCH
7	WCI 08007444
8	WCI 316039801
9	WCI 5303293414
10	SWITCH, DOOR
11	BRACKET-DOOR SW
12	WCI 5303286183
13	RETAINER-INSULATION TOP
14	INSULATION – OVEN WRAP
15	INSULATION
16	WIRE, COVER
17	WCI 5303280344
18	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 3203574
21	VENT TUBE
22	WCI 3051634
23	PLATE-FILLER
24	SHIELD-TOE (2)
25	SCREW-LEVELING (4)
26	SUPPORT-FRONT (2)
27	SHIELD-BOTTOM
28	WCI 08012722
29	GUIDE-DRAWER FRNT (2)
30A	RAIL, DRAWER LH
30	WCI 5308015746
31	SPACER, DRAWER RAIL (2)
32	PANEL-SIDE RH
32A	PANEL-SIDE LH
33	WCI 3051777
34	WCI 3051511
35	316116400 Frigidaire Oven Light Socket
36	316538904 Frigidaire Oven Lamp Light
37	5304524341 Frigidaire Lens
38	RETAINER-LENS
39	BROILER GRILL
40	BROILER PAN
41A	RACK-OFFSET
41	316067902 Frigidaire Oven Rack
42	MOTOR-LATCH ASSY
43	WCI 3051649
44	HOUSING-DOOR LATCH
45	LATCH-DOOR
46	316217002 Frigidaire Oven Temperature Probe
47	SWITCH, THERMAL CUTOUT
48	BUTTON-PLUG
49	BUTTON-PLUG
50	BRACKT-HNG SUPT
51	WCI 5303280340
52	WCI 3051810
53	AXLE – HINGE (2)
54	WCI 5303280341
55	WCI 5303284447
56	WCI 316017600
57	WCI 5303284448
