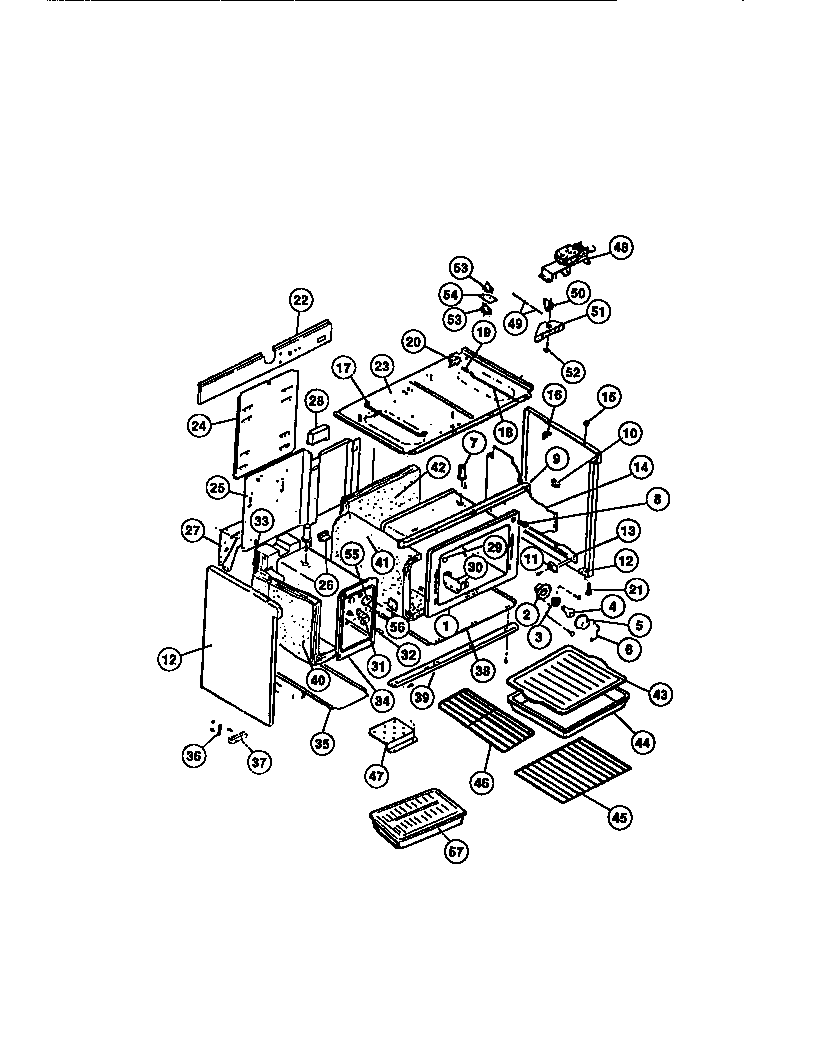

REG46CH2 06 – OVEN LINER, SIDE PANELSadmin2025-04-26T08:46:47+00:00REG46CH2 06 – OVEN LINER, SIDE PANELS
Products
| Position | Product |
|---|
| *25760 | WCI 3934058 |
| 1 | WCI 5303203691 |
| 2 | HOUSING - LIGHT |
| 3 | 316116400 Frigidaire Oven Light Socket |
| 4 | 316538904 Frigidaire Oven Lamp Light |
| 5 | 5304524341 Frigidaire Lens |
| 6 | RETAINER-LENS |
| 7 | WCI 08012252 |
| 8 | BUTTON-PLUG |
| 9 | WCI 5305048202 |
| 10 | WCI 08008878 |
| 11 | GUIDE-DRAWER FRNT (2) |
| 12A | WCI 08012536 |
| 12 | SIDE PANEL-RH WHEAT |
| 13A | GLIDE - DWR LH |
| 13 | GLIDE - DWR RH |
| 14 | WCI 3204820 |
| 15 | BUMPER, COOKTOP (4) |
| 16 | GUSSET - BKGRD (2) |
| 17 | ROD-TOP SUPPORT |
| 18 | WCI 08007445 |
| 19 | WCI 08007444 |
| 20 | SWITCH, DOOR |
| 21 | SCREW-LEVELING (4) |
| 22 | WCI 08016543 |
| 23 | WCI 08014195 |
| 24 | PANEL - WIRE COVER |
| 25 | WCI 3204827 |
| 26 | SUPPORT |
| 27A | WCI 3204823 |
| 27 | WCI 3204822 |
| 28 | SPACER-DRWR GLIDE (2) |
| 29 | BUTTON-PLUG |
| 30 | BRKT - THERMO BULB |
| 31 | BRACKET, DOOR STRIKE |
| 32 | WCI 08011945 |
| 33 | WCI 5301167905 |
| 34 | LINER - SM OVEN |
| 35 | PANEL, BOTTOM, LH |
| 36 | WCI 08003146 |
| 37 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 38 | WCI 3203574 |
| 39 | Channel,oven support ,front |
| 40 | INSUL - WRAP SM OVEN |
| 41 | INSUL - WRAP LGE OVEN |
| 42 | INSULATION |
| 43 | WCI 5303019066 |
| 44 | 5304442087 Frigidaire Range Wall Oven Broil Pan and Insert |
| 45A | 316067902 Frigidaire Oven Rack |
| 45 | RACK-OFFSET |
| 46 | WCI 08014191 |
| 47 | WCI 08014188 |
| 48 | LATCH, MOTOR |
| 49 | WCI 3051649 |
| 50 | SWITCH-SELECTOR |
| 51 | HOUSING-DOOR LATCH |
| 52 | AXLE - HINGE (2) |
| 53 | SWITCH, LOWER |
| 54 | WCI 08003090 |
| 55 | COVER, LIGHT |
| 57 | WCI 08014183 |
