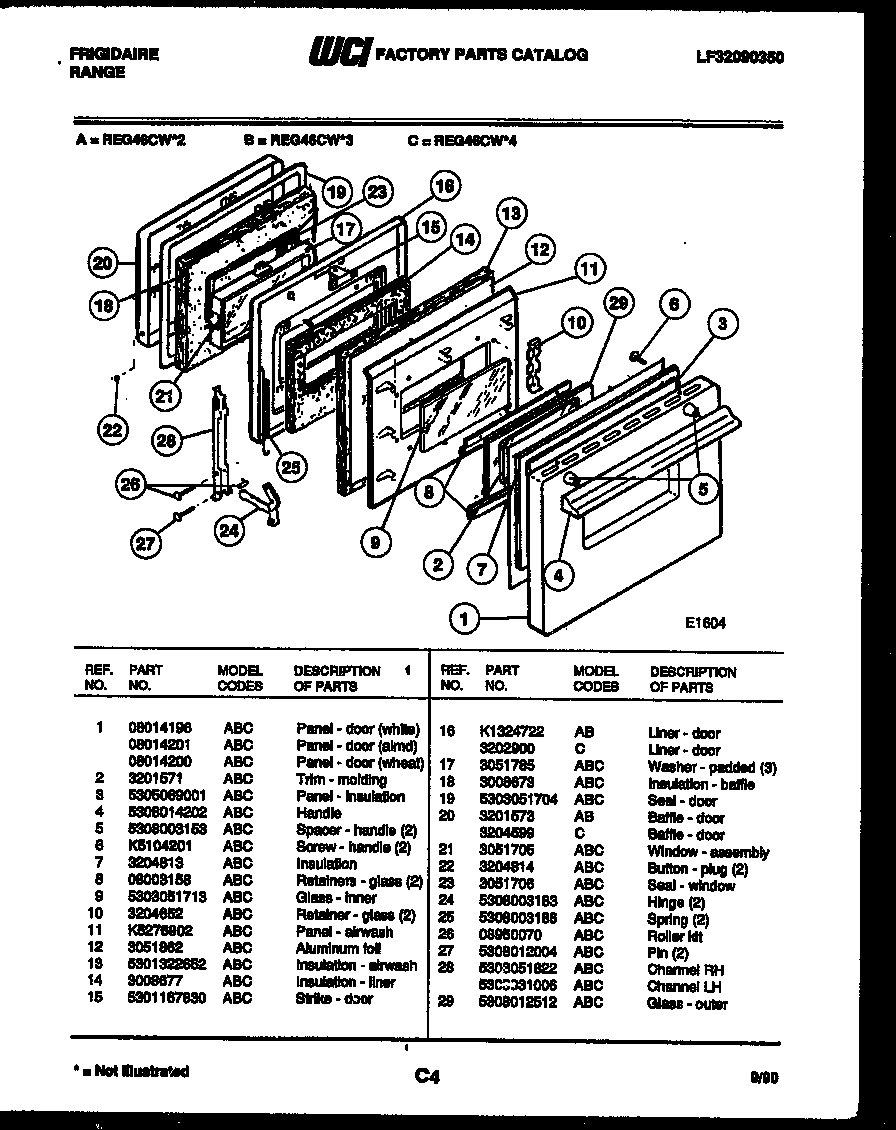

REG46CH3 04 – DOOR PARTS

Products

Position	Product
1	WCI 08014200
2	MOULDING – GLASS
3	PANEL, INSULATION
4	WCI 5308014202
5	SPACER (2)
6	WCI K5104201
7	INSULATION
8	WCI 08003158
9	WCI 5303051713
10	RETAINER, GLASS (2)
11	WCI K5276902
12	FOIL – ALUMINUM J
13	INSULATION, AIRWASH
14	WCI 3008677
15	WCI 5301167830
16	WCI K1324722
17	WASHER-PADDED (3) (NON-ILLUSTRATED)
18	WCI 3008673
19	SEAL, DOOR
20	BAFFLE, DOOR
21	GLASS-PACKAGE
22	WCI 3204814
23	WCI 3051706
24	DOOR HINGE ARM
25	WCI 5308003186
26	WCI 08950070
27	AXLE – HINGE (2)
28A	CHANNEL, LH
28	CHANNEL (2)
29	GLASS, OUTER
