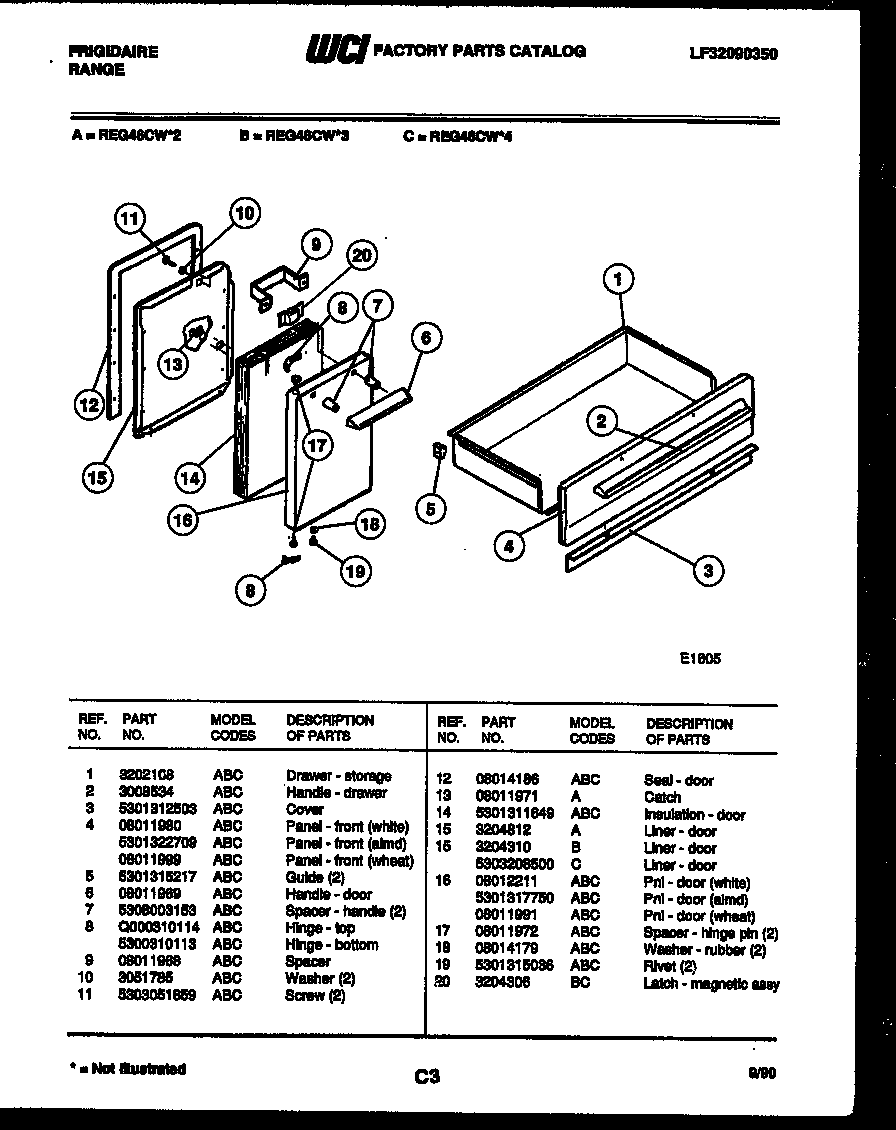

REG46CL3 03 – DOOR AND DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	WCI 3008534
3	COVER-TOE SPACE
4	PANEL – DRAWER (ALMD)
5	GUIDE (2)
6	HANDLE
7	SPACER (2)
8	WCI Q000310114
8A	WCI 5300310113
9	WCI 08011968
10	WASHER-PADDED (3) (NON-ILLUSTRATED)
11	SCREW 10 X 24 (2)
12	WCI 08014186
13	WCI 08011971
14	WCI 5301311649
15	WCI 3204812
16	PANEL COMPLETE (ALMOND)
17	WCI 08011972
18	WCI 08014179
19	WCI 5301315036
