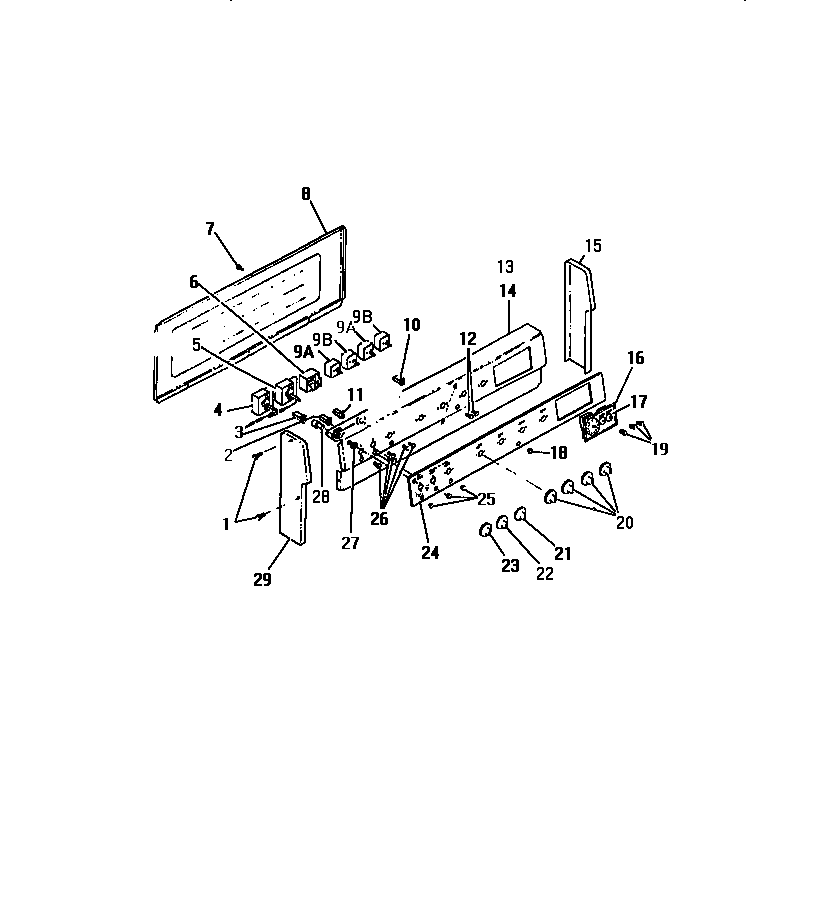

REG46CW0 04 – CONTROL PANEL, COOK-MASTER, SWITCHE

Products

PositionProduct
*38720WCI 8003125
1WCI 8003129
3PILOT LIGHT, OVEN, LEFT
4THERMOSTAT, OVEN, LEFT
5WCI 8014203
6WCI 8012561
7SCREWS (2)
8WCI 8012003
9BSWITCH, 8“ SURFACE UNIT (2)
10LIGHT, PILOT
11LIGHTS, PILOTS (2)
12WCI 8003135
13WCI 8014204
15WCI 8003234
16WCI 8014217
17WCI 8004154
19KNOBS-COOK-MASTER (3)
23KNOB, LEFT OVEN THERMOSTAT
25LENS
26SCREW (6)
27WCI 8012572
28WCI 8003126
29WCI 8003235
