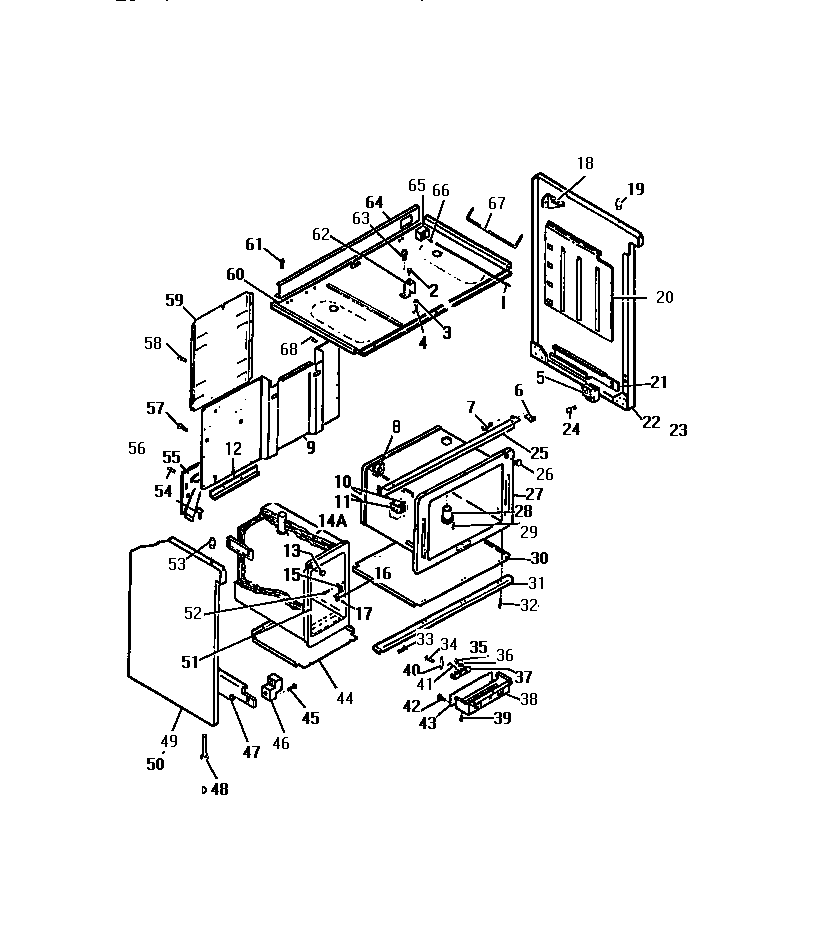

REG46CW0 12 – OVEN LINER, SIDE PANELSadmin2025-04-26T08:46:54+00:00REG46CW0 12 – OVEN LINER, SIDE PANELS
Products
| Position | Product |
|---|
| 1 | WCI 8007445 |
| 2 | WCI 8011957 |
| 4 | WASHERS (2) |
| 6 | WCI 8008878 |
| 8 | WCI 8003144 |
| 9 | WCI 8011952 |
| 11 | WCI 8002854 |
| 12 | WCI 8011953 |
| 15 | WCI 8014220 |
| 16 | WCI 8003174 |
| 17 | WCI 8011945 |
| 18 | GUSSET (2) |
| 20 | WCI 8012235 |
| 21 | RAIL, RH |
| 22 | PANEL, END RH, WHITE |
| 25 | WCI 8014212 |
| 26 | WCI 8002852 |
| 27 | WCI 8011949 |
| 28 | WCI 8012252 |
| 29 | SCREWS (2) |
| 30 | WCI 8002869 |
| 31 | WCI 8011954 |
| 34 | SCREW, GROUND WIRE |
| 35 | WCI 8003148 |
| 36 | WASHER (6) |
| 37 | BLOCK |
| 38 | WCI 8003074 |
| 40 | WCI 8003146 |
| 43 | WCI 8003195 |
| 44 | WCI 8014190 |
| 45 | SCREWS (2) |
| 46 | GUIDES (2) |
| 47 | RAIL, LH |
| 48 | WCI 8005229 |
| 49 | PANEL, END, LH, WHITE |
| 51 | WCI 8014213 |
| 52 | SCREW |
| 53 | BUMPERS (4) |
| 55 | GUSSETS, LH |
| 56 | GUSSETS, RH |
| 59 | WCI 8003194 |
| 60 | WCI 8004195 |
| 62 | WCI 8011956 |
| 64 | WCI 8011958 |
| 65 | WCI 8003081 |
| 66 | WCI 8007444 |
| 67 | WCI 8003079 |
| 68 | SCREWS (2) |
