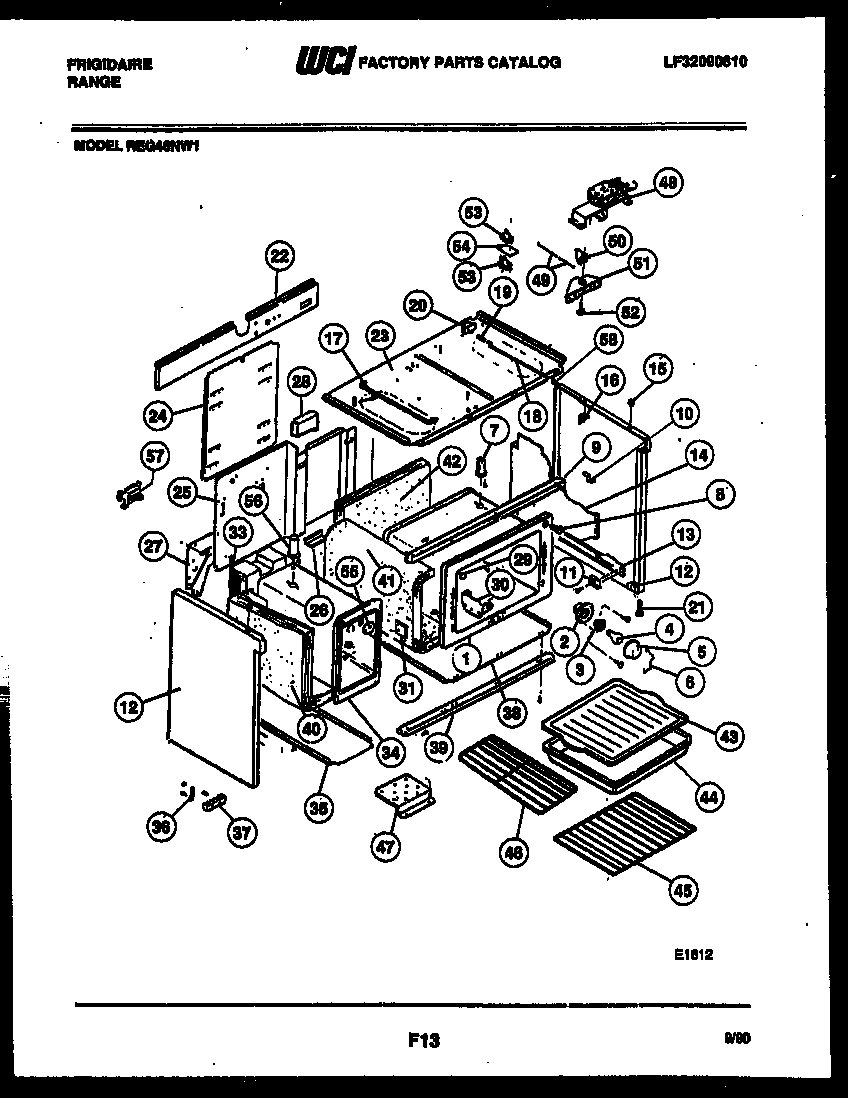

REG46NL1 06 – BODY PARTS

Products

Position	Product
*38835	WCI 08014183
*38835	WCI 3051810
1	WCI 3204608
2	HOUSING – LIGHT
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
7	WCI 5305055002
8	BUTTON-PLUG
9	WCI 5303209619
10	WCI 08008878
11	GUIDE-DRAWER FRNT (2)
12	SIDE PANEL RH-ALMD
12A	SIDE PANEL LH-ALMD
13	GLIDE – DWR RH
13A	GLIDE – DWR LH
14	WCI 3204820
15	BUMPER, COOKTOP (4)
16	GUSSET – BKGRD (2)
17	ROD-TOP SUPPORT
18	ROD-SWITCH
19	WCI 08007444
20	SWITCH, DOOR
21	SCREW-LEVELING (4)
22	WCI 5303209319
23	WCI 08014195
24	PANEL – WIRE COVER
25	WCI 3204827
26	SUPPORT
27A	WCI 3204823
27	WCI 3204822
28	SPACER-DRWR GLIDE (2)
29	BUTTON-PLUG
30	BRACKET-THERMO BULB (2)
31	WCI 3204318
33	WCI 5301167905
34	LINER – SM OVEN
35	PANEL, BOTTOM, LH
36	PLATE=GROUND STRAP
37	5304409888 Frigidaire Oven Terminal Block with Hardware
38	WCI 3203574
39	Channel,oven support ,front
39A	WCI 3934058
40	INSUL – WRAP SM OVEN
42	INSULATION
43	WCI 5303131356
44	PAN-BROILER
45	RACK-OFFSET
45A	316067902 Frigidaire Oven Rack
46	WCI 08014191
47	WCI 08014188
48	LATCH, MOTOR
49	WCI 3051649
50	LATCH-DOOR
51	HOUSING-DOOR LATCH
52	AXLE – HINGE (2)
53	SWITCH, LOWER
54	WCI 08003090
55	COVER, LIGHT
56	WCI 3017402
57	WCI 5301308270
58	WCI 08067758
