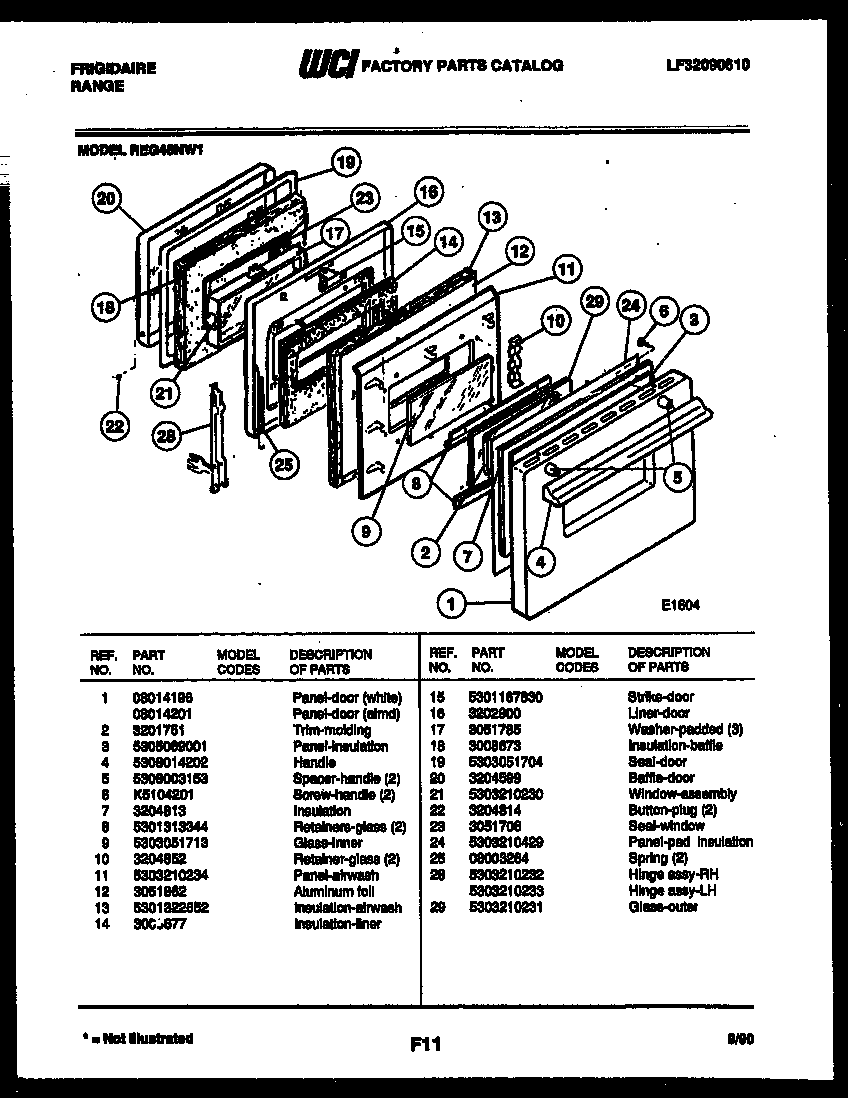

REG46NW1 04 – DOOR PARTS

Products

Position	Product
1	WCI 08014196
2	WCI 3201751
3	PANEL, INSULATION
4	WCI 5308014202
5	SPACER (2)
6	WCI K5104201
7	INSULATION
8	RETAINERS-GLASS (2)
9	WCI 5303051713
10	RETAINER, GLASS (2)
11	WCI 5303210234
12	FOIL – ALUMINUM J
13	INSULATION, AIRWASH
14	WCI 3008677
15	WCI 5301167830
16	WCI 3202900
17	WASHER-PADDED (3) (NON-ILLUSTRATED)
18	WCI 3008673
19	SEAL, DOOR
20	WCI 3204599
21	GLASS PACKAGE
22	WCI 3204814
23	WCI 3051706
24	WCI 5303210429
25	WCI 08003264
28	HINGE-ASSEMBLY (2)
28A	WCI 5303210233
29	WCI 5303210231
