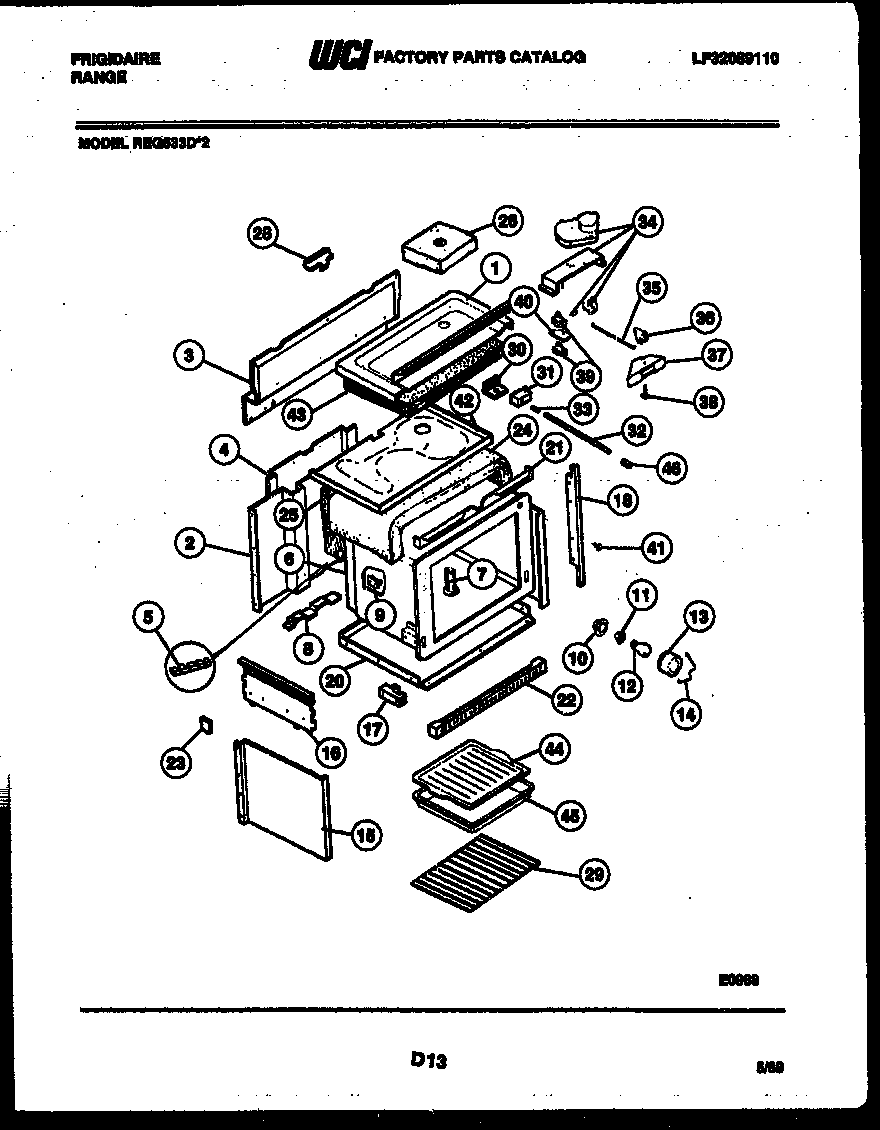

REG533D2 05 – BODY PARTS

Products

Position	Product
*29279	PLUG BUTTON – THERMO BULB HOLE
*29279	WCI 3051810
*29278	RIVET, POP
*29278	WCI 3203578
1	WCI 3051553
2	BACK
3	WCI 08008689
4	PANEL – WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
7	VENT TUBE
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	WCI 3051515
15	SHIELD-INSUL. (2)
16	PANEL-UPPER SIDE (2)
17A	WCI 3051528
17	WCI 3051527
18	TRIM-FRONT (2)
20	RETAINER, INSUL BTM
21	WCI 08008686
22	WCI 08012249
23	PLATE-FILLER
24	WCI 3051628
25	INSULATION-OVEN BACK
26	INSUL.-VENT TUBE
28	BRACKT-HNG SUPT
29A	RACK-OFFSET
29	316067902 Frigidaire Oven Rack
30	BRACKET-DOOR SW
31	SWITCH – DOOR
32	ROD-SWITCH
33	WCI 08007444
34	MOTOR-LATCH
35	WCI 3051649
36	LATCH-DOOR
37	HSG-DOOR LATCH
38	AXLE
39A	SW-DOOR LATCH (2)
39	WCI 3051740
40	WCI 3051861
41	WCI 3051784
42	SHIELD-INSUL. TOP
43	INSULATION-LINER (NON-ILLUSTRATED)
44	WCI 3051562
45	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
46	WCI 3051251
