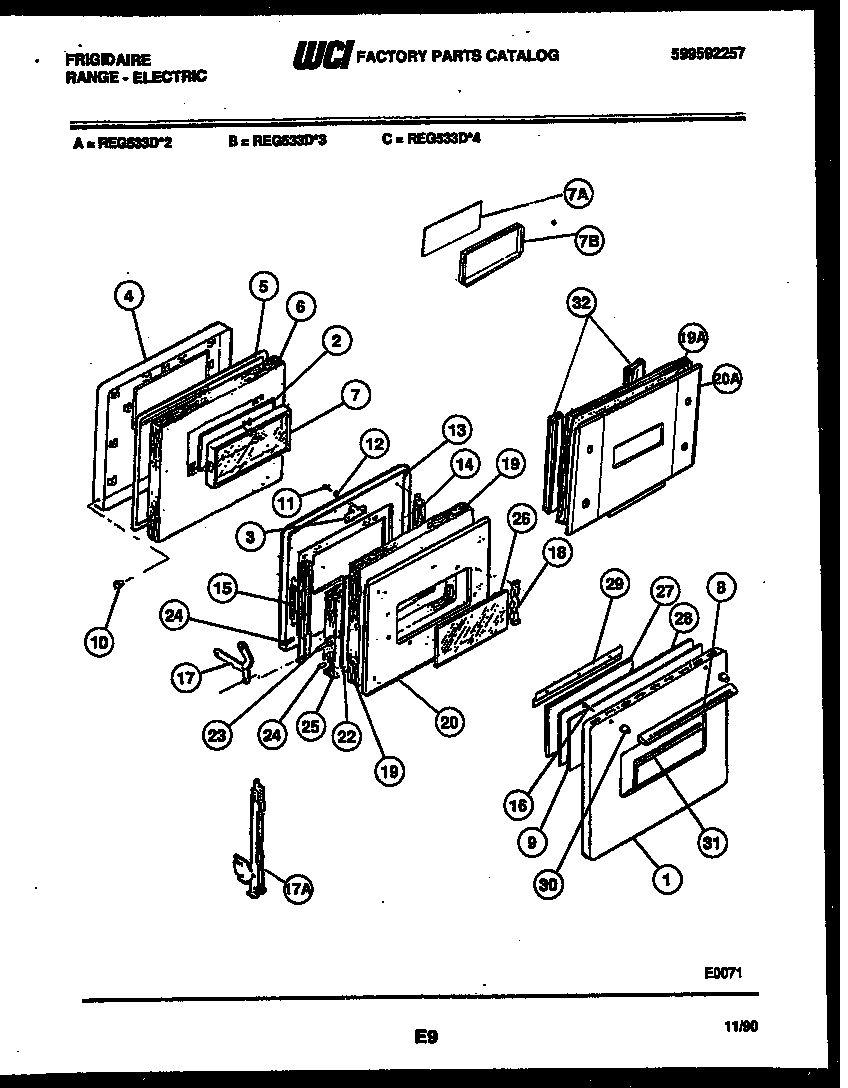

REG533DH4 04 – DOOR PARTS

REG533DH4 04 – DOOR PARTS

Written by

in

REG533DH4 04 – DOOR PARTS

Products

PositionProduct
1PANEL-DOOR-ALMOND
2GASKET-GLASS
3WCI 5301167830
4BAFFLE-OVEN DOOR
5SEAL, DOOR
6WCI 5303269528
7BWCI 5303269564
8HANDLE
9WCI 5301318805
10BUTTON PLUG
1108002868 Frigidaire 0 Screw Assembly
12WASHER-PADDED
13LINER, DOOR
15WCI 08003186
16SCREW-HANDLE
17AHINGE-ASSEMBLY (2)
19AINSULATION-AIRWASH
20AWCI 5303269570
26GLASS-OVEN DOOR, HEAT BARRIER, (2)
27WCI 5303269526
28APANEL-INSULATOR PAD
29BRACKET-MTG (2)
30SPACER (2)
31MOULDING – GLASS
32WCI 5303269530
