REG533DL0 11 – OVEN DOOR PANELS – Aparts

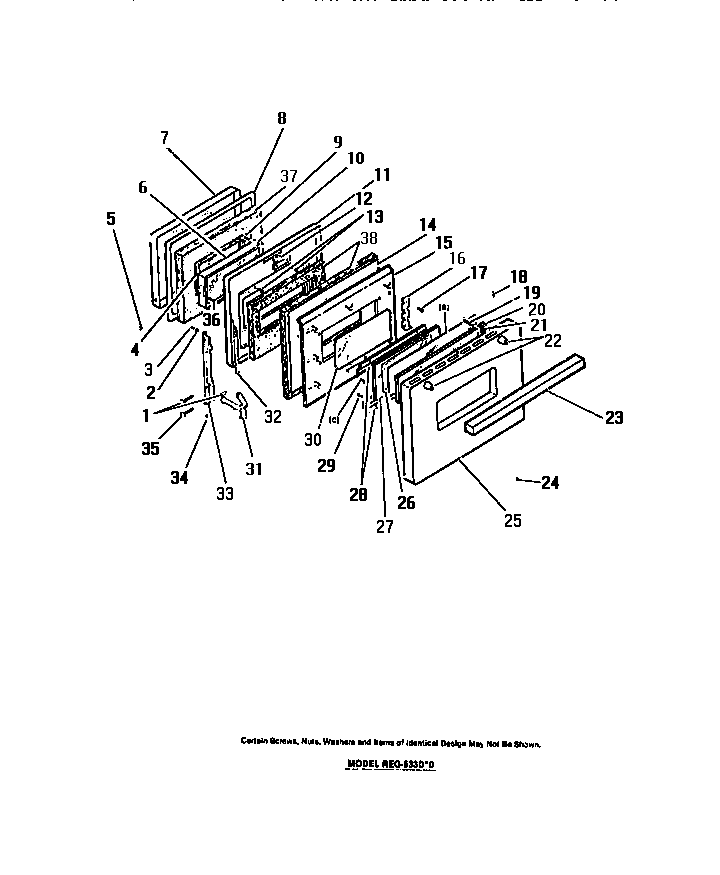

REG533DL0 11 – OVEN DOOR PANELS

Products

Position	Product
C	WCI 8012213
1	KIT, ROLLER (2)
4	WCI 8008691
5	PLUG BUTTONS (2)
6	WCI 8008690
7	WCI 8012516
8	WCI 8008259
10	WASHERS (2)
11	WCI 8008684
12	WCI 8008260
14	WCI 8003175
15	WCI 8016268
16	RETAINERS (2)
19	SCREWS (2)
20	WCI 8003151
21	WASHERS (2)
22	SPACERS (2)
23	HANDLE-DOOR ASSEMBLY
25	WCI 8003222
26	WCI 8003156
27	WCI 8012512
28	WCI 8003158
29	WCI 8003135
30	WCI 8003177
31	WCI 8003183
32	SPRINGS (2)
33	CHANNELS (2)
34	SCREWS (2)
35	PINS (2)
36	SCREWS (2)
