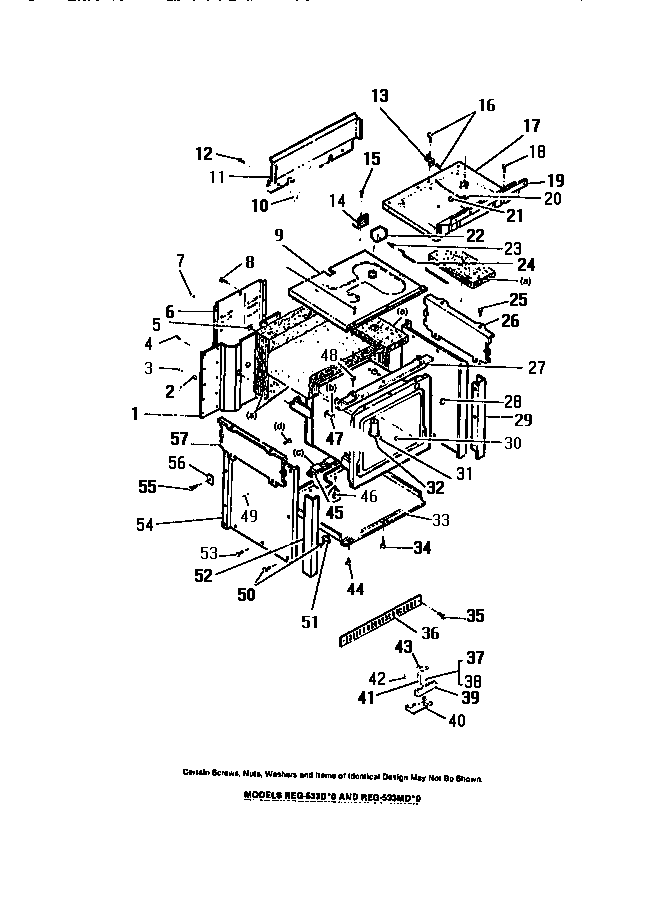

REG533DL0 15 – OVEN LINER, SIDE PANELS

REG533DL0 15 – OVEN LINER, SIDE PANELS

Written by

in

REG533DL0 15 – OVEN LINER, SIDE PANELS

Products

Position	Product
B	SCREW
D	SCREW (4)
1	WCI 8015941
2	WASHERS (2)
5	WCI 8008695
6	WCI 8015750
9	WCI 8012228
10	WCI 8002867
11	WCI 8008689
13	WCI 8015929
14	BRACKET, DOOR LATCH SWITCH
17	WCI 8015927
19	WCI 8015928
20	WCI 8003079
21	SCREWS
22	WCI 8003081
23	WCI 8007444
24	WCI 8007443
25	SCREWS (2)
27	WCI 8012724
28	WCI 8002852
30	WCI 8003144
31	SCREWS (2)
32	WCI 8012253
33	WCI 8011091
35	SCREWS (2)
36	WCI 8012249
37	WCI 8003148
39	BLOCK
41	WCI 8003146
42	SCREWS (2)
43	SCREW, GROUND WIRE
44	WCI 8012213
45	WCI 8015961
47	WCI 8002854
51	WCI 8012244
51A	WCI 8012245
52	WCI 8003334
54	WCI 8012226
55	SCREWS (2)
56	PLATE-FILLER (2)
57	WCI 8015935
