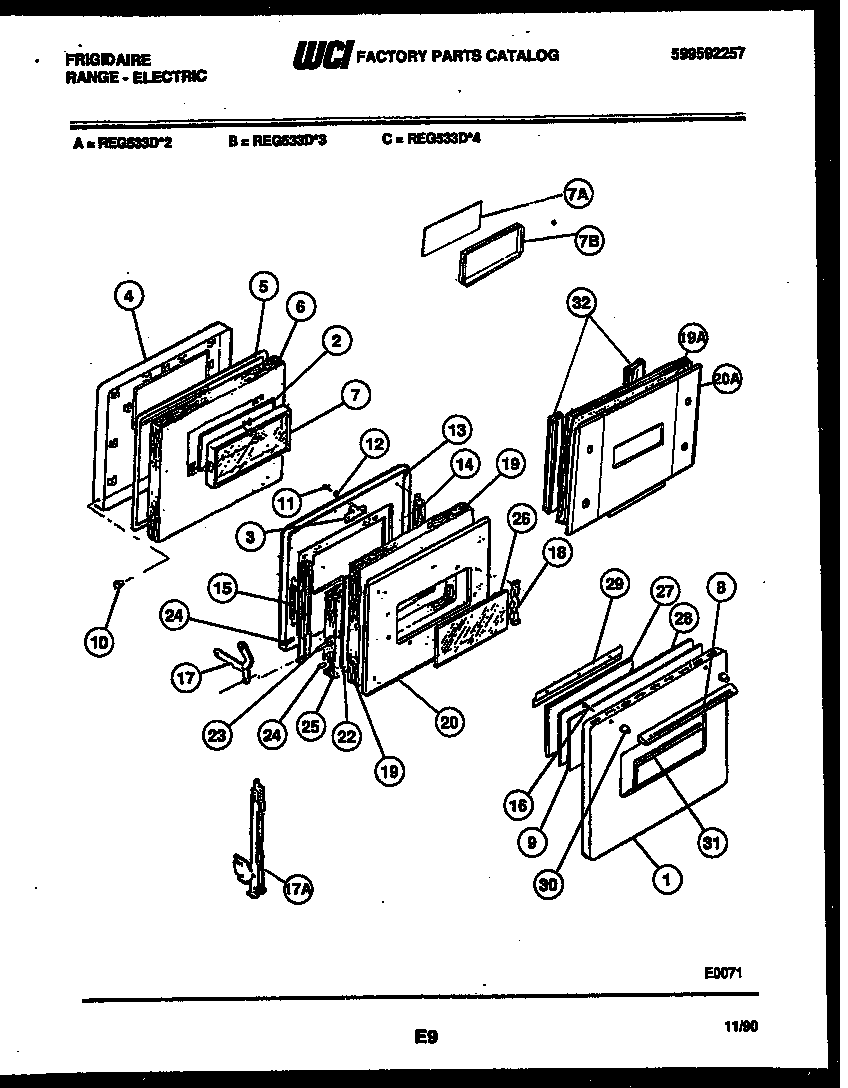

REG533DL2 04 – DOOR PARTS

REG533DL2 04 – DOOR PARTS

Written by

in

REG533DL2 04 – DOOR PARTS

Products

PositionProduct
1WCI 08003225
2WCI 3051706
3WCI 5301167830
4LINER-SHIELD
5SEAL, DOOR
6WCI 3008673
7GLASS-PACKAGE
8HANDLE
9WCI 5301318805
10BUTTON PLUG
1108002868 Frigidaire 0 Screw Assembly
12WASHER-PADDED
13LINER, DOOR
14CHANNEL (2)
15WCI 08003186
16SCREW-HANDLE
17WCI 08003183
18RETAINER, GLASS (2)
19INSUL.-HEAT SHIELD
20WCI 3051712
22FOIL – ALUMINUM J
23WCI 08012004
24WCI 08950070
25WCI 3008677
26WCI 5303051713
27GLASS, OUTER
28PANEL-INSULATOR PAD
29WCI 08003158
30SPACER (2)
31MOULDING – GLASS
