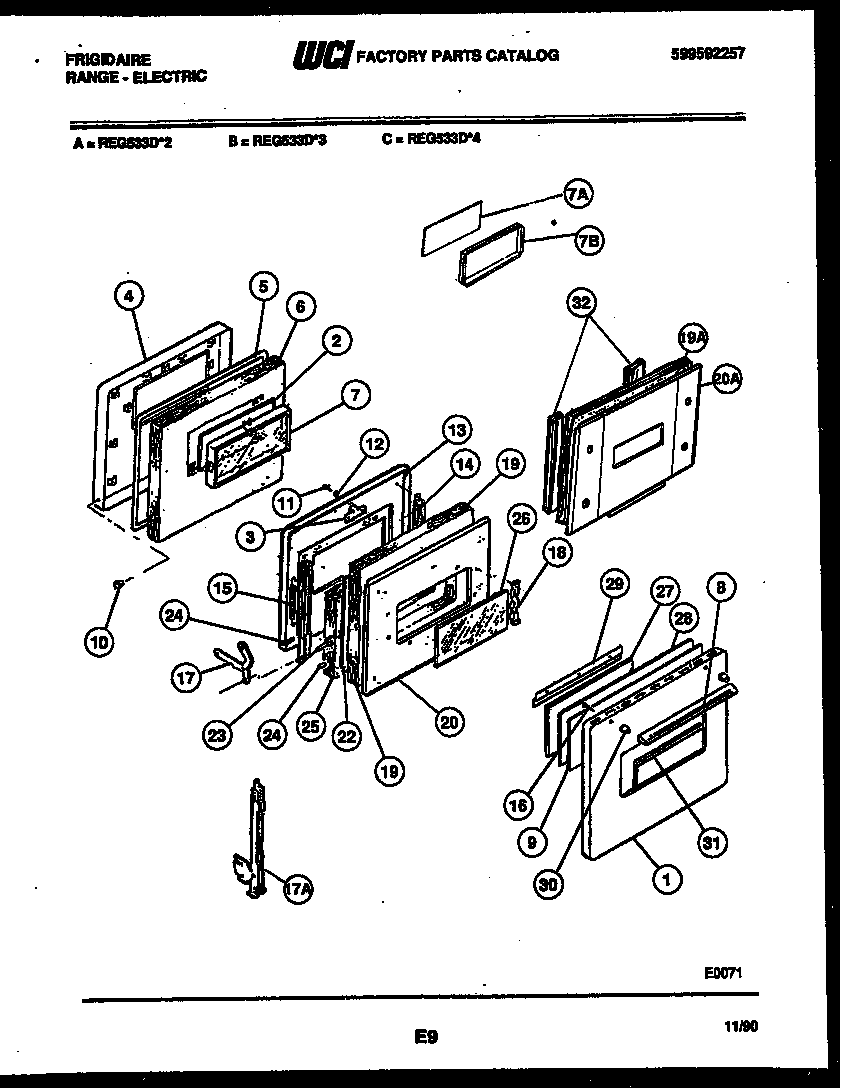

REG533DL3 04 – DOOR PARTS

REG533DL3 04 – DOOR PARTS

Written by

in

REG533DL3 04 – DOOR PARTS

Products

PositionProduct
1WCI 08003225
2WCI 3051706
3WCI 5301167830
4BAFFLE-OVEN DOOR
5SEAL, DOOR
6WCI 3008673
7GLASS PACKAGE
8HANDLE
9WCI 5301318805
10BUTTON PLUG
1108002868 Frigidaire 0 Screw Assembly
12WASHER-PADDED
13LINER, DOOR
15WCI 08003186
16SCREW-HANDLE
17AHINGE-ASSEMBLY (2)
18RETAINER, GLASS (2)
19INSUL.-HEAT SHIELD
20WCI 3051712
22FOIL – ALUMINUM J
25WCI 3008677
26WCI 5303051713
27WCI 5303210231
28PANEL-INSULATOR PAD
29BRACKET-MTG (2)
30SPACER (2)
31MOULDING – GLASS
