REG533DL4 04 – DOOR PARTS – Aparts

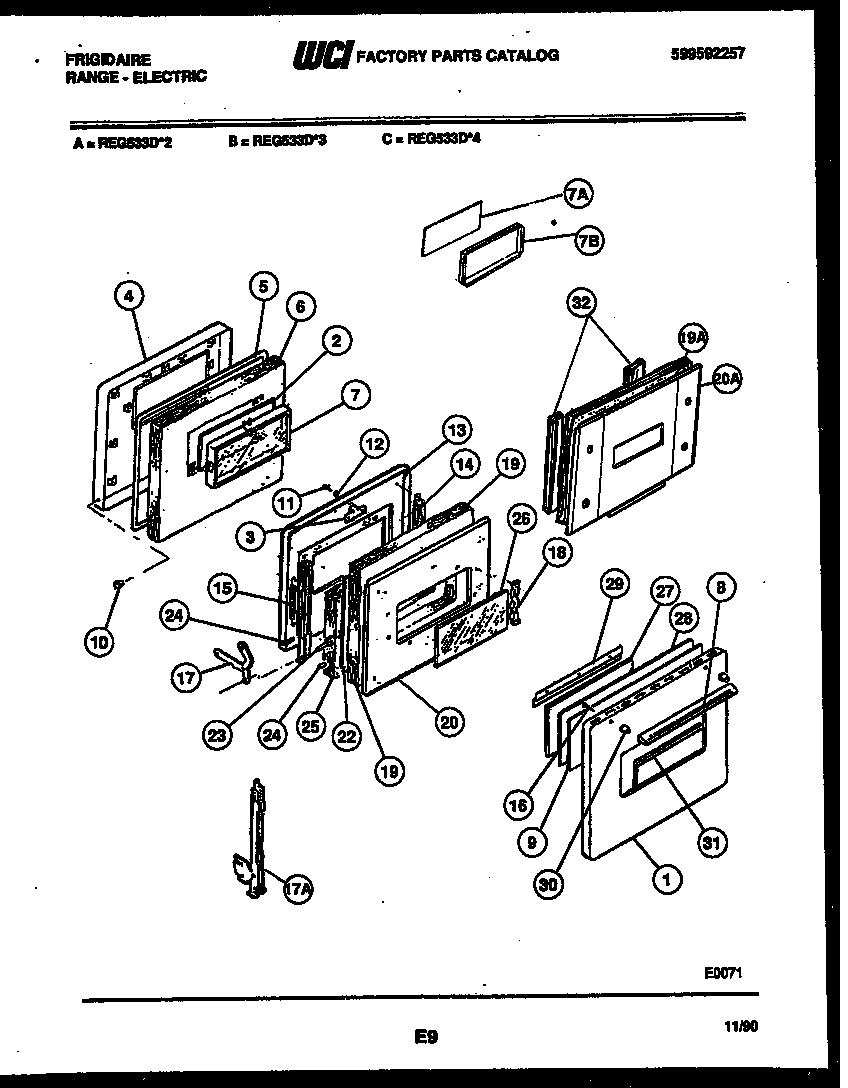

REG533DL4 04 – DOOR PARTS

Products

Position	Product
1	WCI 08003225
2	GASKET-GLASS
3	WCI 5301167830
4	BAFFLE-OVEN DOOR
5	SEAL, DOOR
6	WCI 5303269528
7B	WCI 5303269564
8	HANDLE
9	WCI 5301318805
10	BUTTON PLUG
11	08002868 Frigidaire 0 Screw Assembly
12	WASHER-PADDED
13	LINER, DOOR
15	WCI 08003186
16	SCREW-HANDLE
17A	HINGE-ASSEMBLY (2)
19A	INSULATION-AIRWASH
20A	WCI 5303269570
26	GLASS-OVEN DOOR, HEAT BARRIER, (2)
27	WCI 5303269526
28A	PANEL-INSULATOR PAD
29	BRACKET-MTG (2)
30	SPACER (2)
31	MOULDING - GLASS
32	WCI 5303269530
