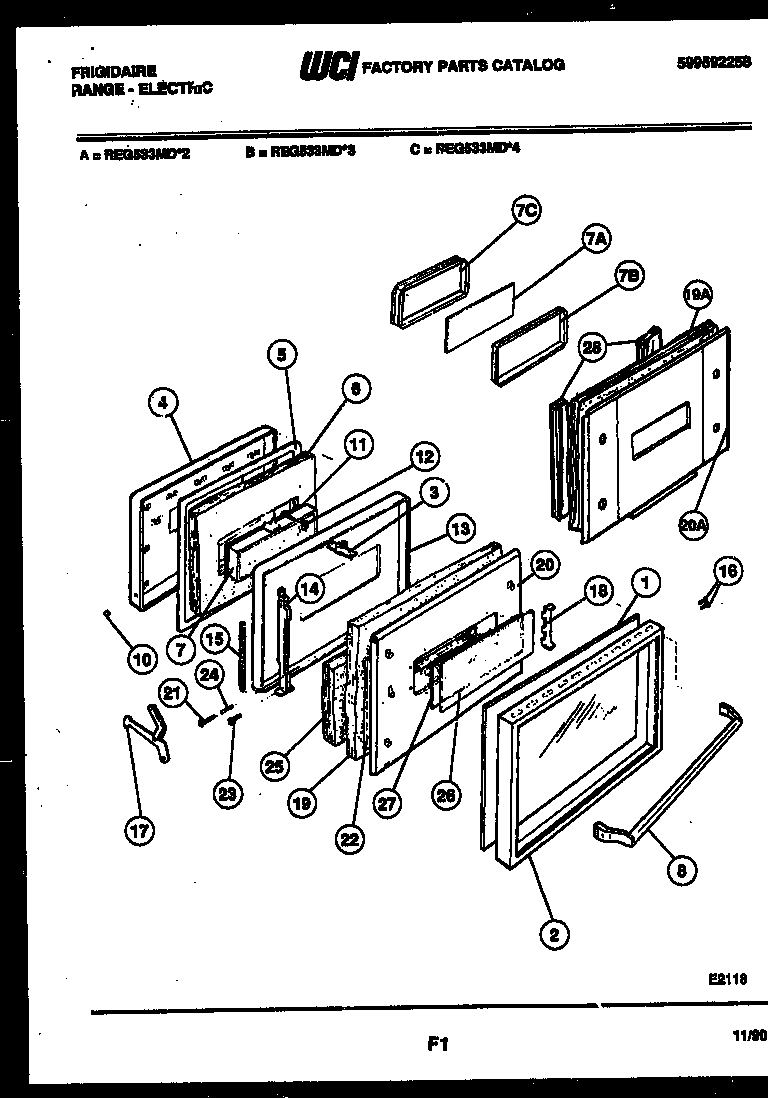

REG533MDM3 04 – DOOR PARTS

Products

Position	Product
*32599	WCI 191S021P29
1	GLASS, OUTER, BLACK
2	WCI 5308015938
3	WCI 5301167830
4	BAFFLE-OVEN DOOR
5	SEAL, DOOR
6	WCI 3008673
7	GLASS PACKAGE
8	WCI 5303207187
10	BUTTON PLUG
11	SCREW 10 X 24 (2)
12	WASHER-PADDED (3) (NON-ILLUSTRATED)
13	LINER, DOOR
14	CHANNEL (2)
15	WCI 5308003186
16	WCI 5303051860
17	DOOR HINGE ARM
18	RETAINER, GLASS (2)
19	INSULATION, AIRWASH
20	WCI 3051712
21	WCI 5303051567
22	FOIL - ALUMINUM J
23	AXLE - HINGE (2)
24	ROLLER
25	WCI 3008677
26	WCI 5303051713
27	WCI 3051706
