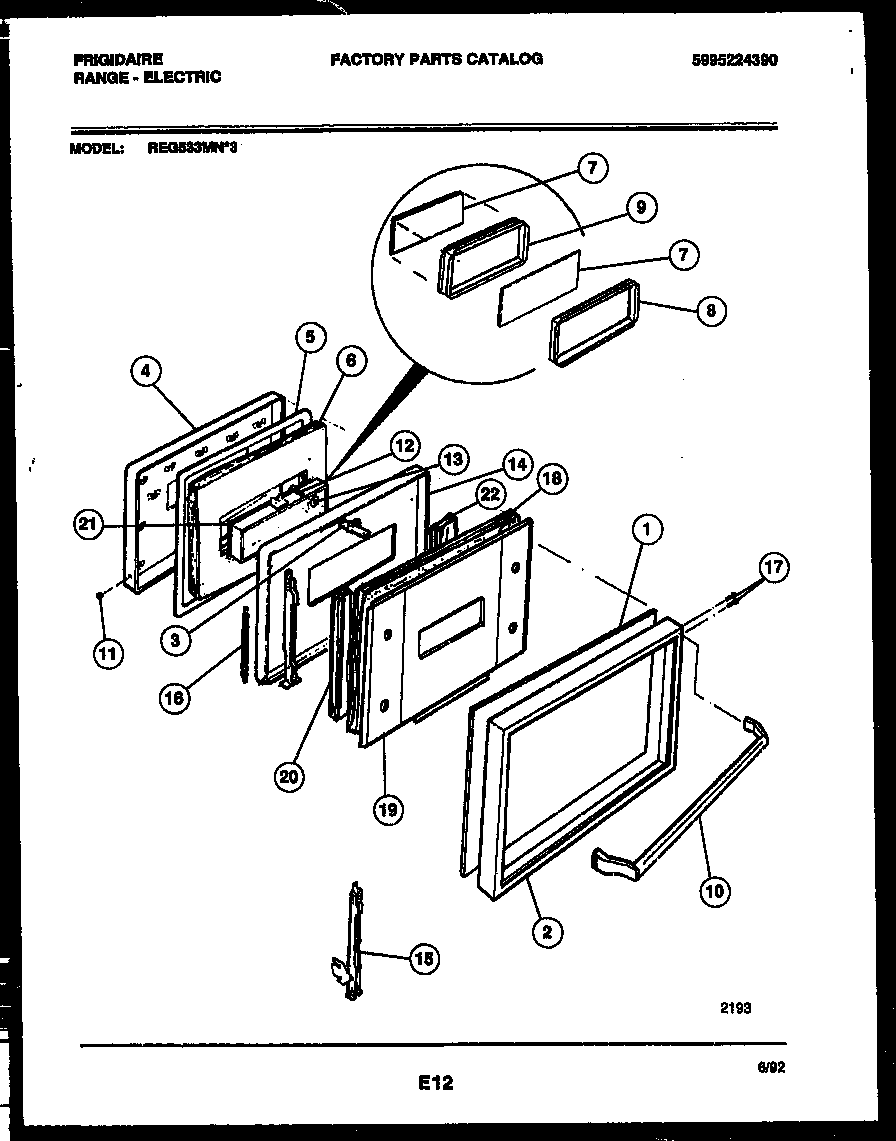

REG533MNW3 04 – DOOR PARTS

Products

Position	Product
*63091	WCI 19100210114
1	GLASS, OUTER, BLACK
2	WCI 5303206826
3	WCI 5301167830
4	WCI 5303269674
5	SEAL, DOOR
6	WCI 5303269528
7	GLASS-OVEN DOOR, HEAT BARRIER, (2)
8	WCI 5303269564
9	WCI 5303269679
10	WCI 5303207187
11	BUTTON PLUG
12	08002868 Frigidaire 0 Screw Assembly
13	WASHER-PADDED (3) (NON-ILLUSTRATED)
14	LINER, DOOR
15	HINGE-ASSEMBLY (2)
16	WCI 5308003186
17	WCI 5303051860
18	INSULATION-AIRWASH
19	WCI 5303269570
20	INSULATION-LINER (NON-ILLUSTRATED)
21	GASKET-GLASS
22	WCI 5303269530
