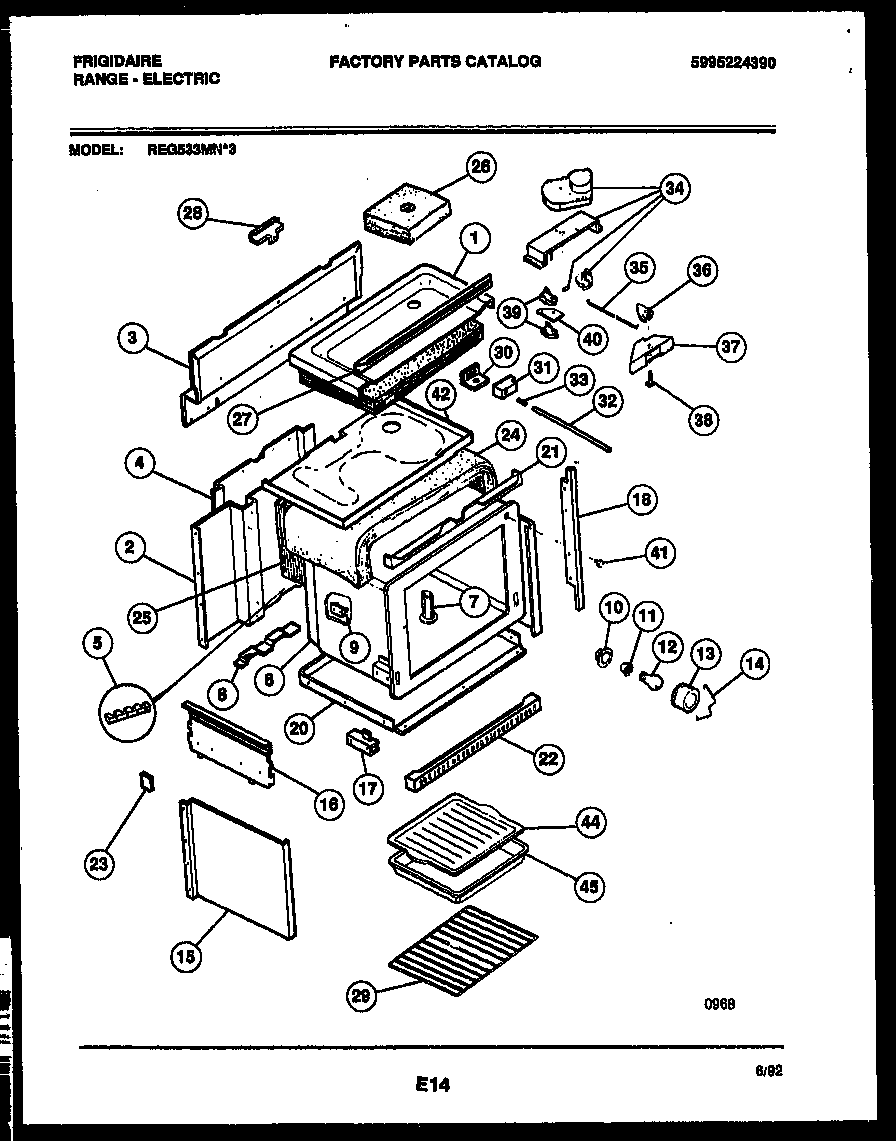

REG533MNW3 05 – BODY PARTS

Products

Position	Product
*63097	RIVET-POP, WARING-PLATE
*63097	BUTTON-PLUG
*63097	WCI 3051810
*63097	WCI 3203578
1	WCI 5303051553
2	WCI 5303280344
3	WCI 5303286183
4	PANEL - WIRE COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
6	WCI 3204607
7	VENT TUBE
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 5303271606
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
17A	WCI 3051528
17	WCI 3051527
18	TRIM-FRONT (2)
20	RETAINER, INSUL BTM
21	WCI 08008686
22	WCI 5308012249
23	PLATE-FILLER
24	INSULATION-OVEN BACK
25	INSULATION
26	INSUL.-VENT TUBE
27A	WCI 19100210114
27	WCI 316039801
28	BRACKT-HNG SUPT
29	316067902 Frigidaire Oven Rack
29A	RACK-OFFSET
30	BRACKET-DOOR SW
31	SWITCH, DOOR
32	ROD-SWITCH
33	WCI 08007444
34	LATCH, MOTOR
35	WCI 3051649
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE - HINGE (2)
39A	SWITCH, LOWER
39	SWITCH-LOWER
40	WCI 08003090
41	BUTTON-PLUG
42	WCI 53033284443
44	WCI 5303131356
45	PAN-BROILER
