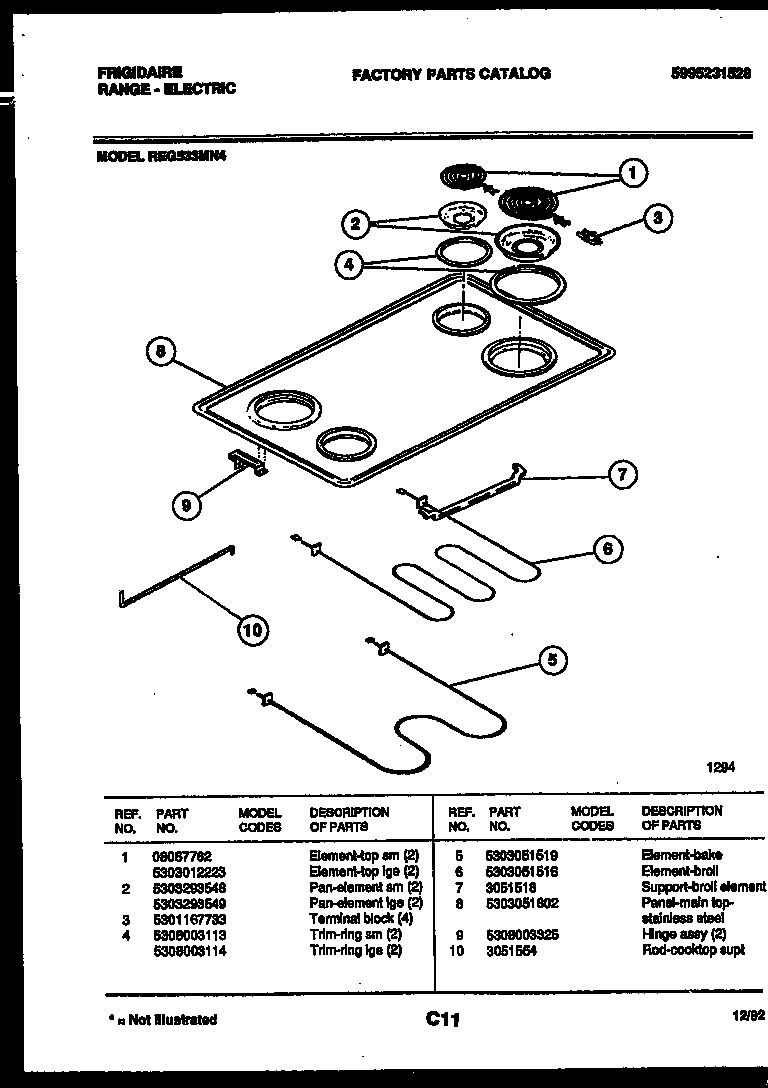

REG533MNW4 03 – COOKTOP AND BROILER PARTS

REG533MNW4 03 – COOKTOP AND BROILER PARTS

Written by

in

REG533MNW4 03 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1318372211 Frigidaire Oven 6" Electric Range Burner Kit
1A316442301 Frigidaire Oven 8 Coil Element 2600W
2APAN-ELEMENT SMALL (2)
2PAN-ELEMENT LARGE (2)
35303935058 Frigidaire Oven Burner Receptacle Kit
4WCI 5308003113
4AWCI 5308003114
55303051519 Frigidaire Oven 2600W Bake Element
65303051516 Frigidaire Broil Element
7HANGER – BROIL UNIT
8TOP-CHROME
9HINGE ASSEMBLY (2)
10ROD-TOP SUPPORT
