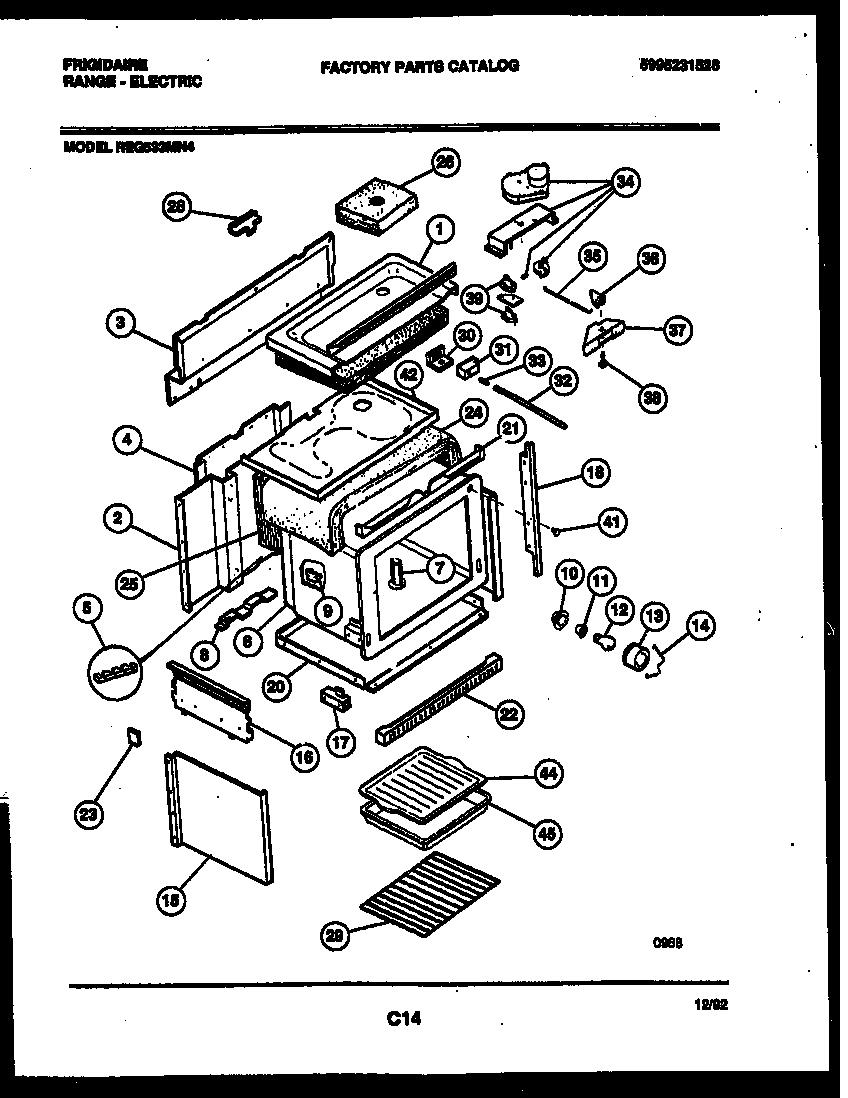

REG533MNW4 05 – BODY PARTS

Products

Position	Product
*72585	WCI 3051810
*72585	BUTTON-PLUG
*72585	WCI 19100210114
*72585	WCI 3203624
1	WCI 5303293414
2	WCI 5303280344
3	WCI 5303286183
4	WIRE, COVER
5	5304409888 Frigidaire Oven Terminal Block with Hardware
7	VENT TUBE
8	WCI 3203574
9	BRACKET-THERMO BULB (2)
10	WCI 3051511
11	316116400 Frigidaire Oven Light Socket
12	316538904 Frigidaire Oven Lamp Light
13	5304524341 Frigidaire Lens
14	RETAINER-LENS
15	SHIELD-INSULATION (2)
16	WCI 5308015935
18	TRIM-FRONT (2)
20	RETAINER, INSUL BTM
21	WCI 5303293413
22	WCI 5308012249
23	PLATE-FILLER
24	INSULATION, OVEN WRAP
25	INSULATION
26	INSUL.-VENT TUBE
28	BRACKT-HNG SUPT
29A	316067902 Frigidaire Oven Rack
29	RACK-OFFSET
30	BRACKET-DOOR SW
31	SWITCH, DOOR
32	ROD-SWITCH
33	WCI 08007444
34	LATCH, MOTOR
35	WCI 3051649
36	LATCH-DOOR
37	HOUSING-DOOR LATCH
38	AXLE – HINGE (2)
39	SWITCH-LOWER
39A	SWITCH, LOWER
41	BUTTON-PLUG
42	WCI 5303284443
44	BROILER GRILL
45	BROILER PAN
